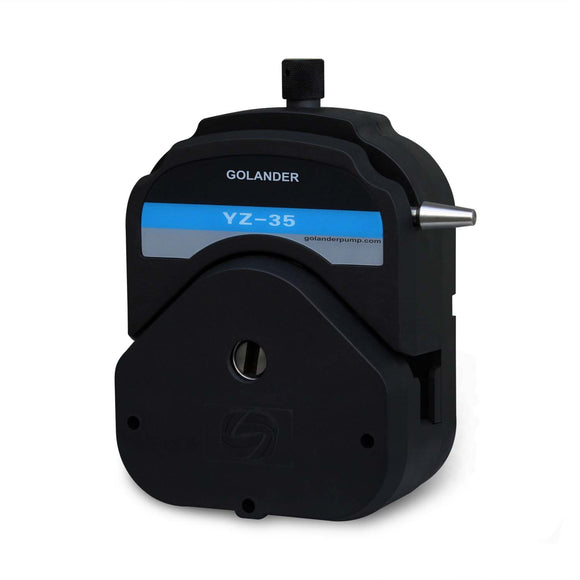

YZ35 High Flow Rate Pump Head
YZ35 peristaltic pump head has a flow range of 0.01-13 l/min, suitable for 73# and 82# tubing.
Features
- New clamp and construction for quick and easy tubing replacement and prevent tubing from drifting during operation.
- Adjustable occlusion to optimize pressure and suction capabilities and tubing life
- Pump housing is made of PPS with 304 stainless steel rollers, resistant to organic solvents and other corrosive liquids
- Compact and robust construction for high speed and long runtime use
- Pump heads are stackable. Mounting the rollers of two pump heads in a 60° staggered position to each other significantly reduces pulsation and increases transfer speed.
Specifications
- Flow range: 0.01 to 13 l/min
- Applicable tubes: 73#, 82#
- Shell material: PPS
- Roller material: 304 stainless steel
- Number of Rollers: 3
- Working temperature: <200 °C
- Chemical compatibility: resistant to acid, alkali and organic solvent
Flow Rate vs rpm
|
YZ35 (Flow rate ml/min) |
rpm | Tubing | |
| 73# | 82# | ||
| 1 | 13 | 22 | |
| 10 | 133 | 217 | |
| 30 | 400 | 650 | |
| 150 | 2000 | 3250 | |
| 350 | 4667 | 7583 | |
| 600 | 8000 | 13000 | |
Click here to download the user's guide.
