DT10 Multi-channel Pump Head
DT10 series is designed for small flow rate and multi-channel fluid transfer.
- Flow range from 0.0002 to 82 ml/min per channel, depending on drive rpm and tubing size.

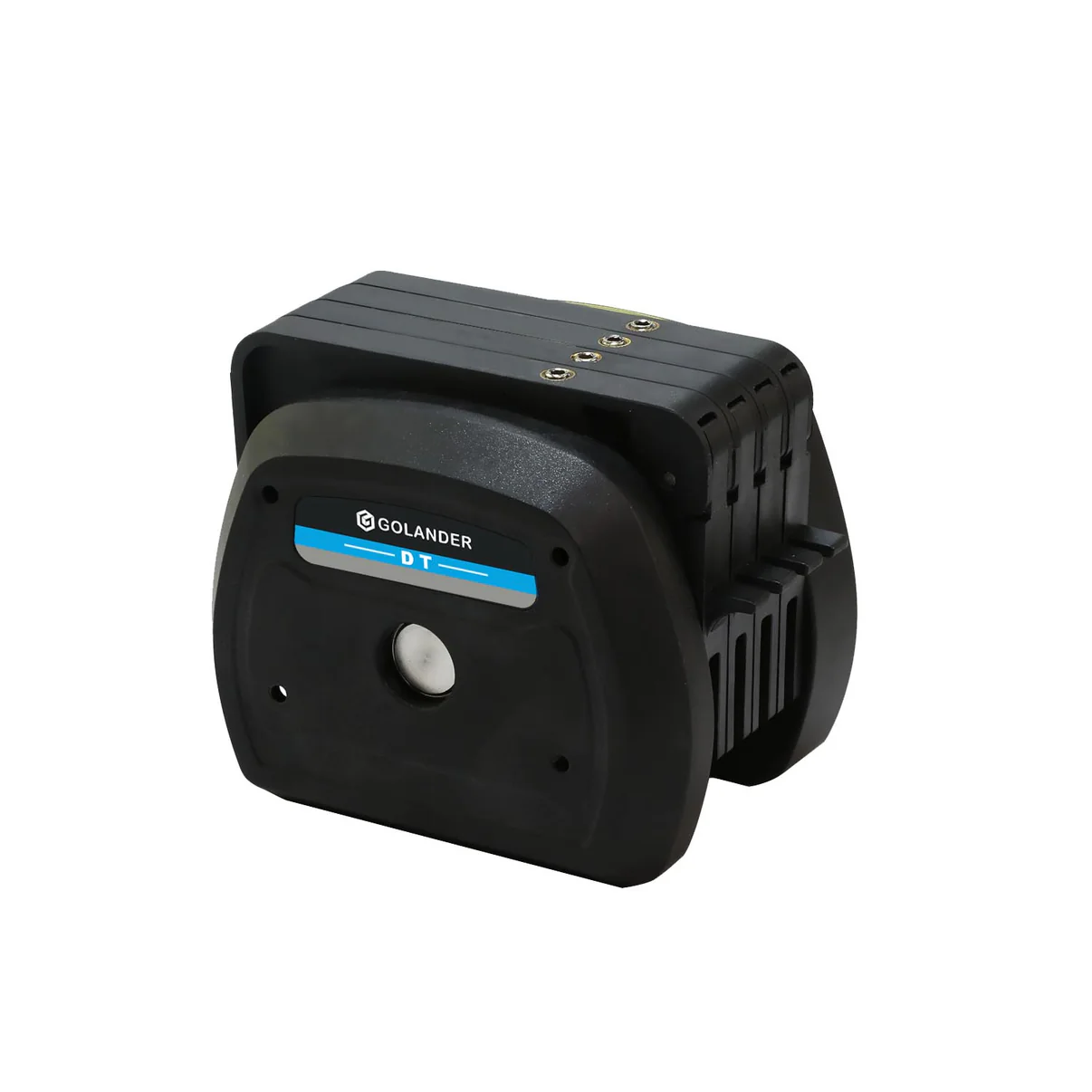

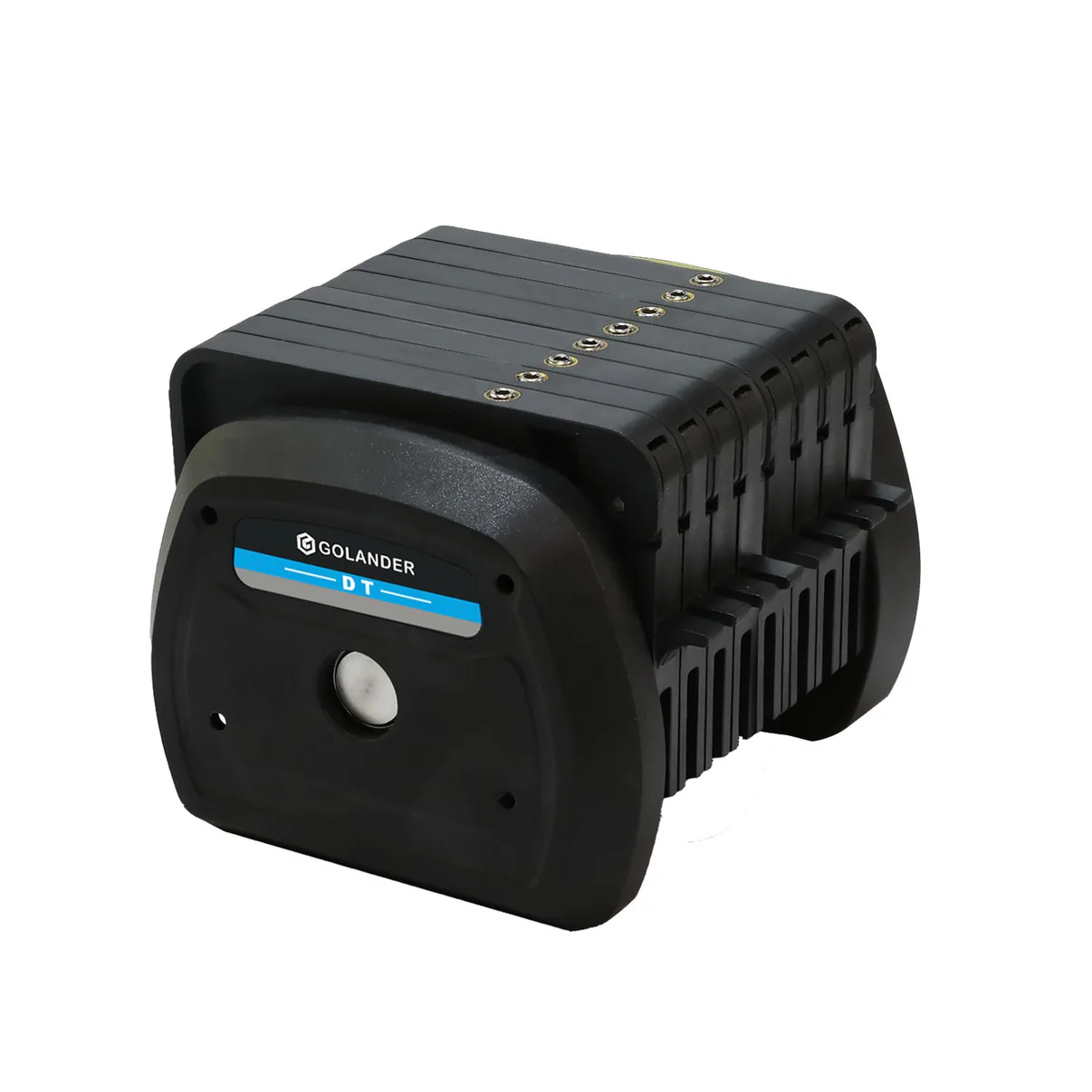

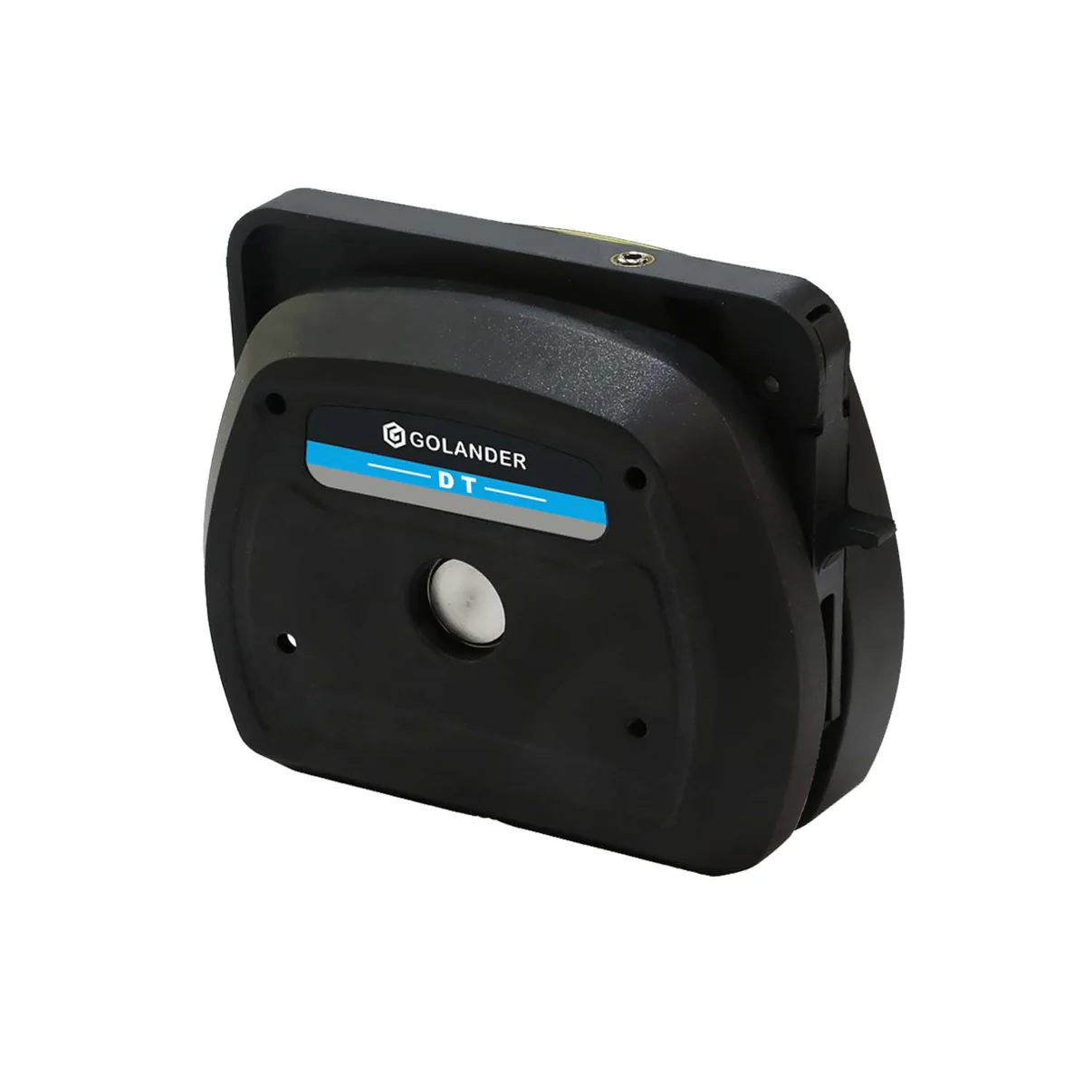

- Four variations with 1, 2, 4 or 8 channels
- The 8-roller design effectively reduces pulsation.
- Rollers are made of stainless steel. The housing and cartridges are made of PPS which are resistant to high temperatures and chemical corrosion.

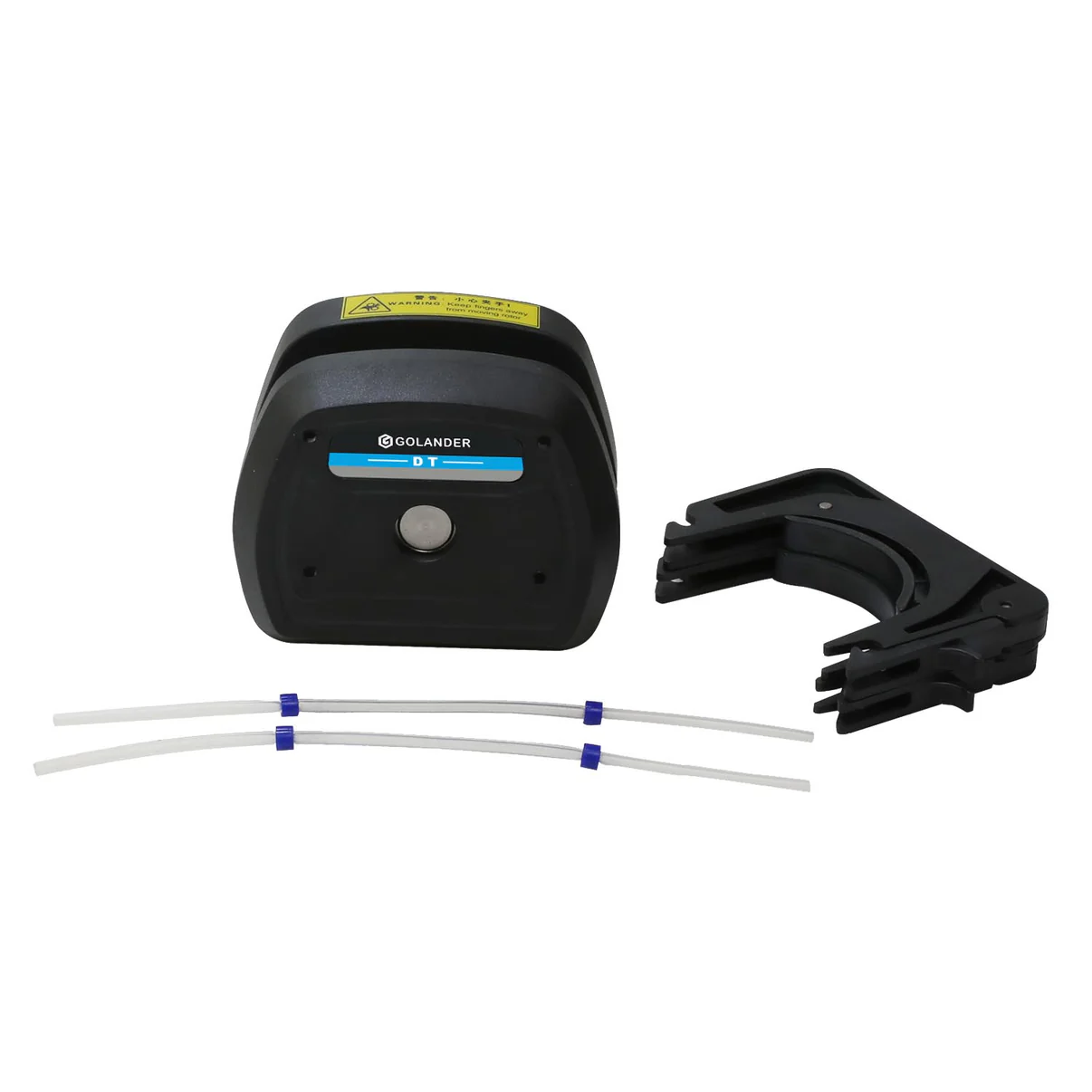

- Independently loadable cartridges are easy to use and provide flow consistency.
- Occlusion can be adjusted.
Specifications
- Flow range: 0.0002~82ml/min
- Cartridge material: PPS
- Roller material: 304 stainless steel
- No. of Rollers: 8
- Occolation adjustment: micro-adjustment
- Applicable tube: wall thickness 0.8~1mm (0.03 ~0.04 inch) ID ≤3.17 mm (0.12 inch), 13#, 14#.
DT10 flow parameters
| Tubing material: Silicone, Pharmed, Viton, Chemical, Tygon 3603 etc | ||||||||
| Wall thickness: 0.8~1mm 13#14# Wall thickness：1.6mm | ||||||||
| ID(mm) | 0.13 | 0.25 | 1 | 2 | 2.4 | 3.2 | 0.8 | 1.6 |
| Tubing size | 13# | 14# | ||||||
| ml/rpm | 0.0023 | 0.0069 | 0.074 | 0.3 | 0.39 | 0.64 | 0.05 | 0.18 |
| Max. flow rate (100 rpm) | 0.23 | 0.69 | 7.4 | 30 | 39 | 64 | 5 | 18 |
Dimension (mm)
| Model | Channels | Max Speed | Tubing | Max Flow Rate | Weight (kg) |
| DT10-18 | 1 | 100 rpm |
ID<3.17mm, Wall thickness: 0.8-1mm |
82 mL/min | 0.72 |
| DT10-28 | 2 | 0.78 | |||
| DT10-48 | 4 | 1.08 | |||
| DT10-88 | 8 | 1.68 |
