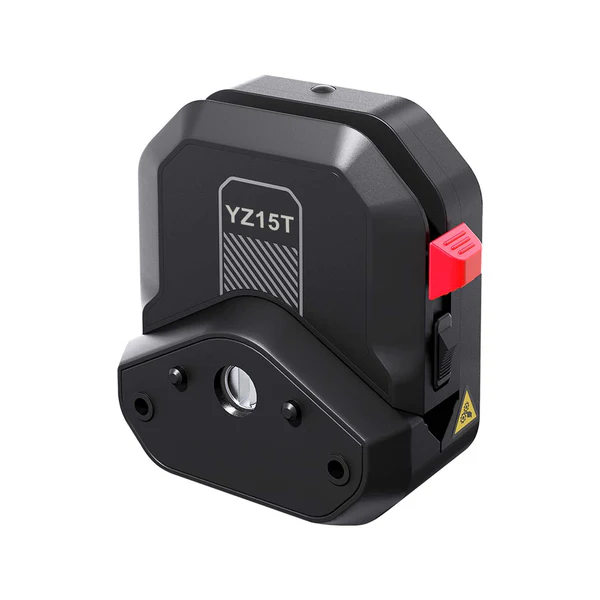

YZ15T Medium Flow Rate Pump Head

  • €247,00
    Unit price per
    (excl. VAT)
Shipping calculated at checkout.


The YZ15T pump head is an upgraded version of the YZ15, designed with enhanced features such as a rear cover for improved integrity and durability.

Features

  • Adjustable Pressure Tube Gap
    To improve compatibility, the YZ15T incorporates a pressure tube gap adjustment structure. The gap can be fine-tuned by turning adjustment screws on the top of the pump head, making it adaptable to tubes of varying specifications. This feature enhances pressure control, extends tube service life, and ensures broader applicability. Please note that the adjustment screws are pre-set during manufacturing. Users are advised not to adjust them independently. For assistance, please contact us directly for support.
  • Tube Clamp Linkage Mechanism
    A patented tube clamp linkage mechanism enhances convenience during installation. When the pressure block is opened, the tube clamp retracts inward, allowing simultaneous opening of the pressure block and tube clamp. This innovation simplifies operation, reduces installation difficulty, and improves work efficiency.
  • Adaptive Clamping Device
    The adaptive clamping device automatically adjusts to accommodate tubes with different inner diameters. This eliminates the need for manual intervention.

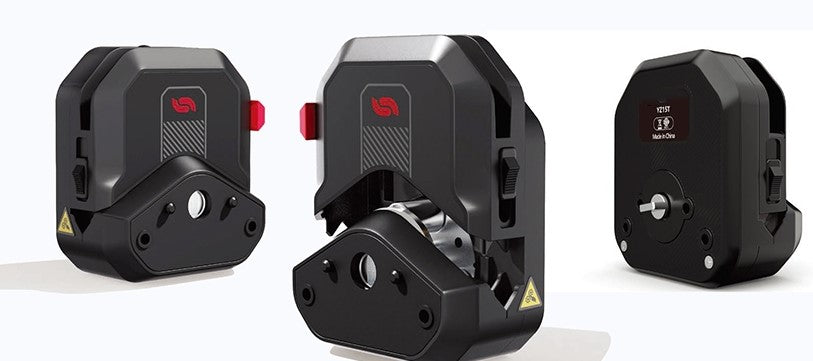

  • Classic Quick-Open Design
    The YZ15T retains its classic quick-open mechanism, allowing for tubing replacement in just a few seconds. This feature improves both efficiency and ease of use.
  • PPS Material Shell
    The pump head shell is constructed from PPS material, which offers superior resistance to organic solvents and other corrosive liquids. This significantly improves the product's durability and corrosion resistance, ensuring long-term reliability.
  • Stainless Steel Roller
    The stainless steel roller is built to handle high-speed, long-term operation with ease. It meets demanding usage requirements while offering exceptional durability and an extended lifespan.
  • Support for Multi-Channel Configurations
    The YZ15T supports cascading configurations of multiple pump heads, with an expansion capability of up to 10 channels. When two pump heads are connected in series, the rollers are staggered at a 60° angle, effectively reducing fluid pulsation and enhancing transmission stability and speed.

Flow Rate

Tube material: Silicone, Pharmed, Viton, Tygon E-3603, Tygon Chemical, Tygon A-60-F, Tygon A-60-G.  Wall thickness: 1.6mm.

Tube Material Tube Flow rate (mL/min)
30rpm 60rpm 100rpm 300rpm 600rpm
Silicone 13# 2.1 4.2 7.0 21.1 41.0
14# 7.9 15.6 26.4 79.1 158.5
19# 16.2 31.7 53.9 161.6 331.1
16# 28.2 54.9 94.1 282.4 572.5
25# 60.4 116.2 201.2 603.7 1201.6
17# 94.1 174.7 313.7 941.1 1728.5
18# 141.1 255.6 470.2 1410.6 2479.1
Pharmed 13# 1.9 3.7 6.2 18.6 37.2
14# 8.0 15.9 26.7 80.1 162.5
19# 16.6 28.2 55.3 165.9 338.6
16# 22.8 55.9 76.1 228.2 598.4
25# 57.3 110.8 190.9 592.7 1169.6
17# 88.8 170.9 296.0 888.1 1832.5
18# 130.0 243.5 433.3 1299.9 2817.8

The above flow data are all obtained from the transfer of pure water under normal temperature and pressure conditions in the laboratory. This data is for reference only.

Specifications

  • Channel: 1 (expandable to a maximum of 10 channels)
  • Roller Options: 3 (default) and 6
  • Pressure Tube Clearance: Adjustable
  • Pump Head Material: PPS+PP+PA66+Metal
  • Roller Material: Stainless Steel (S304)
  • Dimensions: 95.7 × 108.7 × 63.1 mm
  • Working Environment: Temperature 0–40℃, Humidity <80% RH
  • Liquid Temperature: up to 200℃
  • Corrosion Resistance: Compatible with most acids, alkalis, salt solutions, and organic solvents.

Dimensions (mm)
