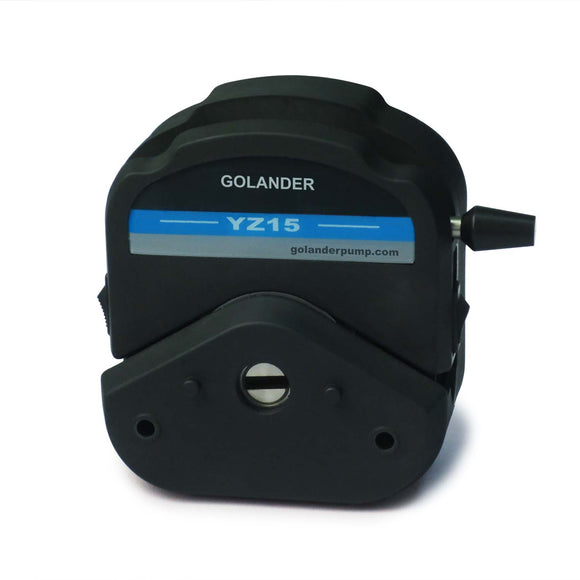

YZ15 Medium Flow Rate Pump Head
The YZ15 peristaltic pump head has a flow rate range of 0.006 to 2300 ml/min and is compatible with 13#, 14#, 19#, 16#, 25#, 17# tubing. It meets the requirements of larger suction, head or outlet pressure.
- With an adaptive tubing-fitting system, which allows easy fitting of tubing of different sizes without manual adjustment.
- Classic pump tubing locking mechanism, which takes only a few seconds to change the tubing, making it easy to cope with frequent tubing changes
- Special construction to reduce wear and tear on the pump tubing and accidental ruptures caused by misuse.
- PPS/PES special functional plastic housing and SS rollers to ensure that the pump head can meet the demands of intense use such as operating at high speed and for long hours.
- Stackable multiple pump heads; extending up to 10 channels.
- A wide range of motor types such as stepper motors, servo motors, AC motors and DC motors.
- Low pulsation and waterproof pump heads are also available
- Flow range: 0.006~1700mL/min
- Applicable tubings: 13#, 14#, 19#, 16#, 25#, 17#
- Shell material: PPS/PES
- Roller material: 304 stainless steel
- Roller number: 3/6
- Gap adjustment: fixed
- Colour: black/white
- No. of Channels: 1 channel (extendable to 10 channels)
- Working temperature: < 200 °C
- Chemical compatibility: PPS is resistant to most acids, alkali and organic solvents. PES is resistant to most liquids except for chlorinated hydrocarbons, ketones and strong acids.
- Weight: 454g (3 Rollers), 480g (6 Rollers)
Flow Rate Parameters
|Wall Thickness (mm)||1.6||1.6||1.6||1.6||1.6||1.6|
|Volume Per Revolution (ml)||0.06||0.22||0.48||0.8||1.67||2.83|
|Flow rate (600 rpm, ml/min)||36||130||286||480||1000||1700|
|Tubing material： Silicone, Pharmed, Viton, Tygon 3603, Norprene chemical, Norprene a-60-F, Norprene a-60-G|
