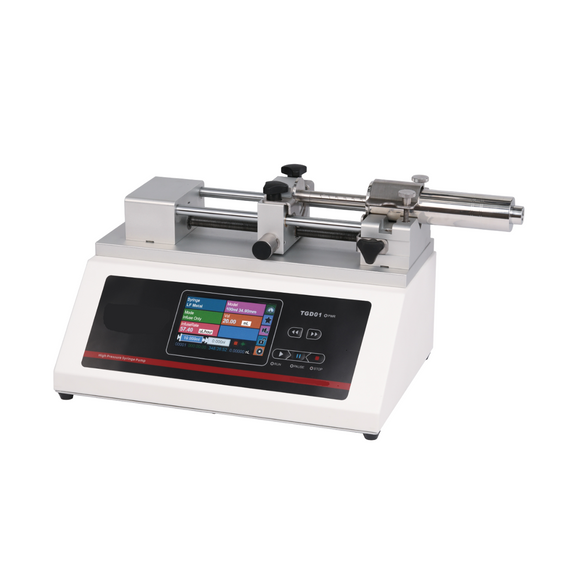

The LHA-01 single-channel high-pressure syringe pump is designed for precise and high-force fluid delivery, accommodating syringes ranging from 0.5 μL to 140 mL with a flow range of 3.06 pL/min to 215 mL/min. Its high-definition LCD touchscreen enables intuitive parameter configuration, precise monitoring, and easy selection of five operational modes, including injection and withdrawal. The pump ensures reliable high-precision performance and incorporates protective features and an integrated alarm system. External signals can control the pump’s start/stop functions via the built-in RS485 communication, supporting the MODBUS protocol, making it versatile and easily integrated into various liquid transfer applications.
Functions and Features
- 4.3-inch color LCD touchscreen, easy and intuitive to operate
- Built-in database of syringes manufacturers and sizes
- Supports custom syringes (manual input of inner diameter)
- Features snap-on stainless steel syringes for high-pressure or viscous liquid transfer
- Ensures accurate and stable injection even for highly corrosive or viscous liquids
- Supports multiple operating modes
- Built-in RS485 communication interface supporting MODBUS protocol for communication and remote control
- Wide input voltage range (AC 100–240 V, 50/60 Hz) for flexible use
- Allows programming without the need for a PC.
- Suitable for laboratories, industry, and analytical instruments
-
Typical applications: microsphere preparation, electrospinning, dispensing systems, mass spectrometers
Specifications
- Stroke: 140 mm
- Syringe Volume: 0.5 μL – 140 mL
- Operating Modes: Inject, withdraw, inject then withdraw, withdraw then inject, continuous cycle
- Adjustable Thrust: 1 – 100%, adjustable
- Operation: 4.3-inch color touchscreen, function keys for frequently used command
- Volume Calibration: More accurate volume achieved through calibration program
- Communication Interface: RS485, MODBUS protocol; optional Wi-Fi
- Stroke Control Accuracy: ±0.35% (for stroke > 30% of full stroke)
- Linear Speed Range: 0.36 µm/min – 190 mm/min
- Stroke Resolution: 0.156 µm/µstep
- Power-Off Memory: Retains parameters set before power loss
- Number of Channels: 1
- Power Supply: AC 100 – 240 V, 50/60 Hz
- Operating Environment: Ambient temperature 5 – 40 °C, relative humidity < 80%
- Rated Linear Thrust: >91 kgf
-
Dimensions (L × W × H): 305 × 222 × 190 mm
- External Control: External signal for start/stop with status signal output
- Display: 4.3-inch true color touchscreen; simultaneously displays delivered volume, remaining volume, flow rate, running direction, syringe type, and animated operation status
- Flow Range: 3.06 pL/min – 215 mL/min
- Protection Class: IP31
- Weight: 6.6 kg
Syringe Specifications and Flow Reference Table
| Syringe Size |
Min Flow Rate |
Max Flow Rate |
| 0.5 µL |
3.000 pL/min |
1.583 µL/min |
| 1 µL |
6.027 pL/min |
3.181 µL/min |
| 2 µL |
11.998 pL/min |
6.333 µL/min |
| 5 µL |
33.264 pL/min |
17.556 µL/min |
| 10 µL |
66.508 pL/min |
35.102 µL/min |
| 25 µL |
150.261 pL/min |
79.305 µL/min |
| 50 µL |
299.962 pL/min |
158.313 µL/min |
| 100 µL |
600.221 pL/min |
316.784 µL/min |
| 250 µL |
1.501 nL/min |
792.152 µL/min |
| 500 µL |
2.998 nL/min |
1.582 mL/min |
| 1000 µL |
6.004 nL/min |
3.169 mL/min |
| 1 mL |
6.243 nL/min |
3.295 mL/min |
| 2.5 mL |
6.654 nL/min |
3.512 mL/min |
| 3 mL |
20.839 nL/min |
10.998 mL/min |
| 5 mL |
40.640 nL/min |
21.449 mL/min |
| 8 mL |
25.652 nL/min |
13.539 mL/min |
| 10 mL |
58.850 nL/min |
31.060 mL/min |
| 20 mL |
102.608 nL/min |
54.154 mL/min |
| 30 mL |
131.795 nL/min |
69.558 mL/min |
| 50 mL |
199.968 nL/min |
105.538 mL/min |
| 100 mL |
344.384 nL/min |
181.758 mL/min |
| 140 mL |
407.208 nL/min |
214.915 mL/min |
*The reference flow rate data is obtained by transferring pure water at room temperature and atmospheric pressure. Actual flow rates may vary due to pressure, medium properties, and other factors.
Syringe Types and Size Ranges
| Type |
Size Range |
| Plastic Syringe |
1–140 mL |
| Micro Syringe |
0.5–1000 µL |
| Glass Syringe |
1–50 mL |
| Gas-Tight Syringe |
5–100 mL |
| Stainless Steel Syringe |
8, 20, 50, 100 mL (stock) / 2.5, 8, 20 mL (custom) |
Stainless Steel Syringe Specifications
| Syringe Size |
ID (mm) |
OD (mm) |
Effective Stroke (mm) |
Working Pressure PN (MPa) |
Adapter Tube |
| 8 mL |
9.53 |
13 |
112.4 |
12.8 |
φ3 × 0.5 mm |
| 20 mL |
19.13 |
22 |
69.6 |
4.8 |
φ6 × 1.0 mm |
| 50 mL |
28.6 |
32 |
77.83 |
4.8 |
φ8 × 1.0 mm |
| 100 mL |
34.9 |
38 |
104.5 |
4.8 |
φ10 × 1.5 mm |
