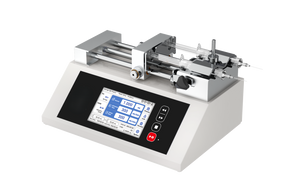

LAB-02 Laboratory Dual Syringe Pump
Featuring a user-friendly 4.3" HD LCD touch screen display and an operational keypad, the LAB-02 dual syringe pump ensures easy operation, delivering precise and accurate fluid volumes for diverse applications. Capable of accommodating two syringes ranging from 10μL to 140mL, it offers a flow rate spanning from 0.184nL/min to 173.718mL/min.
Function and Features
- Accommodates two syringes ranging from 10 μL to 140 mL
- Offers five working modes
- Features a color LCD touch screen for easy operation
- Equipped with a keypad and indicators for clear working status
- Provides screen lock and muted-key operation options
- Includes a built-in database of major brand-name syringes
- Offers syringe protection and blockage alarm features
- Comes with a flow rate calibration function
- Demonstrates excellent anti-electromagnetic interference performance
- Includes built-in RS485 communication with MODBUS protocol support
- Allows external signals to control start/stop and direction
- Adapts to a wide range of power inputs
- Housed in a durable full metal casing
Specifications
Flow Rate Reference
| Syringe size | Syringe ID(mm) | Min flow rate (nL/min) | Max flow rate(mL/min) |
| 10µl | 0.485 | 0.184 | 0.027 |
| 25µl | 0.729 | 0.417 | 0.626 |
| 50µl | 1.03 | 0.833 | 0.125 |
| 100µl | 1.457 | 1.667 | 0.250 |
| 250µl | 2.304 | 4.169 | 0.625 |
| 500µl | 3.256 | 8.326 | 1.248 |
| 1ml | 4.699 | 17.342 | 2.601 |
| 5ml | 11.989 | 112.890 | 16.933 |
| 10ml | 14.427 | 163.469 | 24.520 |
| 20ml | 19.05 | 285.027 | 42.754 |
| 30ml | 21.59 | 366.090 | 54.913 |
| 60ml | 26.594 | 555.459 | 83.318 |
| 100mL | 35.7 | 1000.982 | 150.147 |
| 140mL | 38.4 | 1158.117 | 173.718 |
Note: The flow rate data above is obtained from testing pure water under normal temperature and pressure and is provided for reference only. Actual usage may vary due to specific factors such as pressure, medium characteristics, etc.
