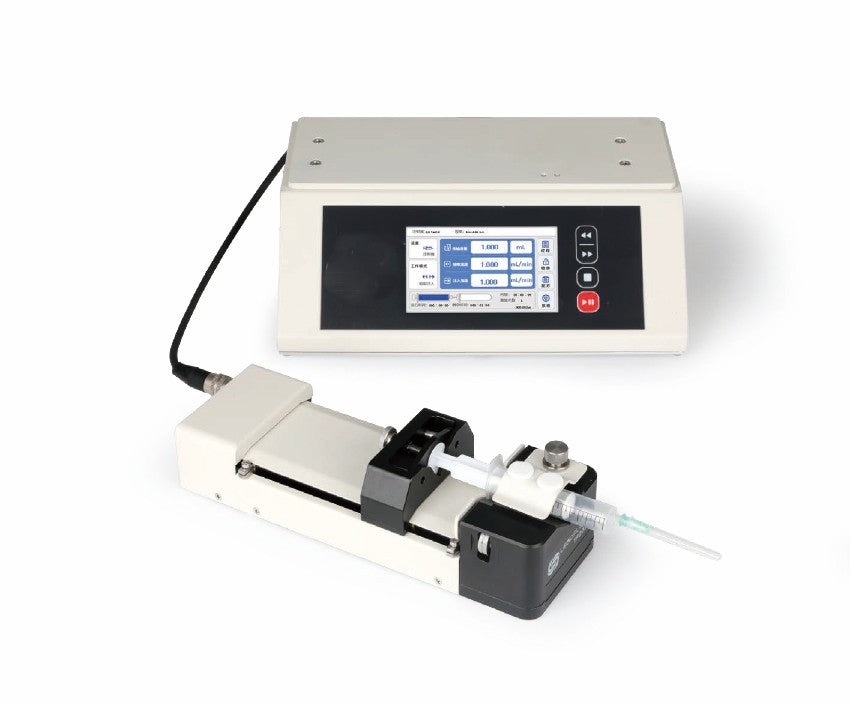

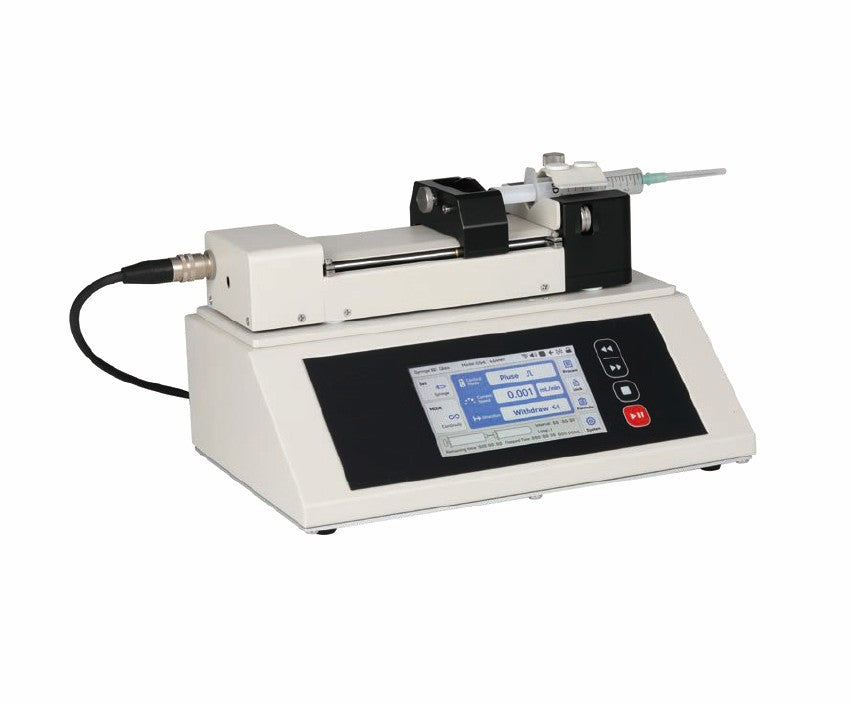

LSB-01 Split-Style Single Syringe Pump
Functions and Features
- 4.3-inch color LCD touchscreen with animated icons
- User-friendly function keys for easy operation
- Multiple working modes
- Separate controller and execution unit design for easy installation
- Screen lock and mute operation supported
- Indicator lights for clear status display
- Compatibility with various standard syringes, customizable
- High-precision control
- RS485 communication with Modbus protocol support
- External signal control for start, stop, and direction
- Wide-ranging power input support
Specifications
| Syringe Size | 10μL ~ 60mL |
| Flow Range | 0.184nL/min ~ 86.318mL/min |
| Operation Method | Touchscreen + common function keys |
| Display | 4.3-inch color LCD; simultaneous display of transferred volume, remaining volume, flow rate, operating direction, syringe specifications, etc.; animated display of operating status |
| Calibration | Flow rate calibration for accuracy |
| Communication Interface | RS485, MODBUS protocol |
| Operating Modes | Injection, Withdrawal, Injection/Withdrawal, Withdrawal/ Injection, Continuous mode |
| Linear Speed Range | 1μm/min ~ 150mm/min |
| Stroke | 110mm (maximum stroke) |
| Thrust Adjustment | 1~100%, adjustable |
| Rated Linear Thrust | >10kgf (maximum rated linear thrust) |
| Linear Speed Resolution | 1μm/min |
| Stroke Control Accuracy | < ±0.35% (when stroke > 30% of maximum stroke) |
| Status Signal Output | 1 channel indicating start/stop status, 1 channel indicating direction status |
| Stroke Resolution | 0.156μm/μstep |
| Power Loss Memory | Retain parameters before power loss |
| Syringe Selection | Built-in major manufacturers, selection of major models; can use custom syringes, inputting syringe inner diameter directly |
| Other Functions | Pause and stop; muted operation; parameter lock; fast forward and rewind; display brightness adjustment |
| Power Supply | AC100V-240V, 50/60Hz |
| Operating Environment | Ambient temperature 5-40℃, relative humidity <80% |
| Control Signal Input | 1 channel falling edge trigger start, 1 channel falling edge trigger stop |
| Controller Size | 245x205x95mm |
| Execution Unit Size | 266x86x76mm |
| Weight | 2 + 1.8kg (Controller + Execution Unit) |
Reference Flow Rate
| Syringe Size | Inner Diameter (mm) | Minimum Flow Rate (nl/min) | Maximum Flow Rate (ml/min) |
|---|---|---|---|
| 10μL | 0.485 | 0.184 | 0.027 |
| 25μL | 0.729 | 0.417 | 0.0626 |
| 50μL | 1.03 | 0.833 | 0.125 |
| 100μL | 1.457 | 1.667 | 0.250 |
| 250μL | 2.304 | 4.169 | 0.625 |
| 500μL | 3.256 | 8.326 | 1.248 |
| 1mL | 4.699 | 17.342 | 2.601 |
| 5mL | 11.989 | 112.890 | 16.933 |
| 10mL | 14.427 | 163.469 | 24.520 |
| 20mL | 19.05 | 285.027 | 42.754 |
| 30mL | 21.59 | 366.090 | 54.913 |
| 60mL | 26.594 | 555.459 | 86.318 |
The flow rate data is obtained from testing with pure water under normal temperature and pressure conditions. Actual usage may vary due to factors such as pressure, medium characteristics, etc. This information is provided for reference purposes only.
