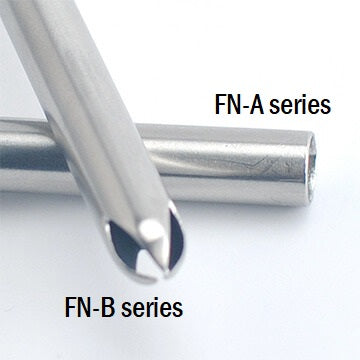

The dispensing nozzle prevents splashing and dripping, ensuring accurate fluid transfer. Made of 304 and 316 stainless steel, it is corrosion-resistant. Available in various sizes and designs.
| Model |
For tubing |
Material |
Length (mm) |

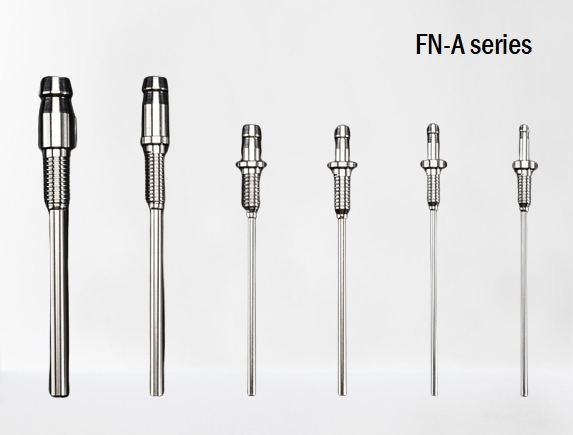

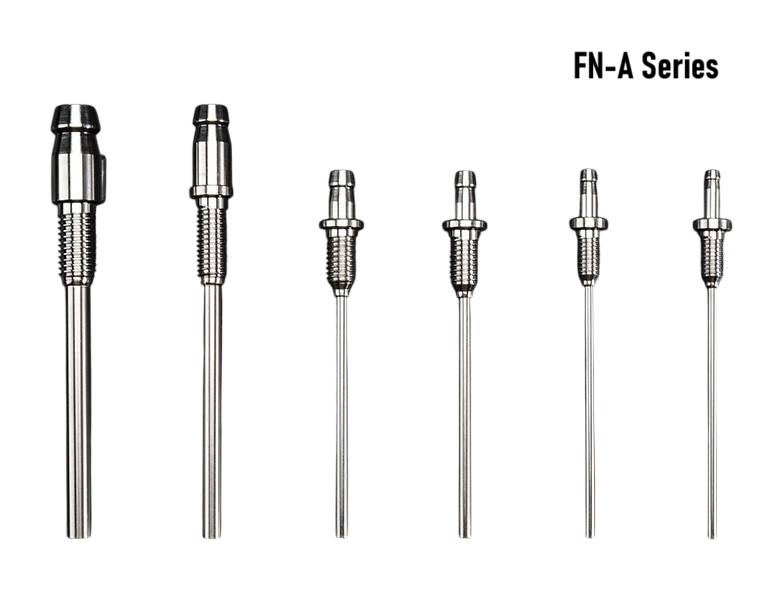

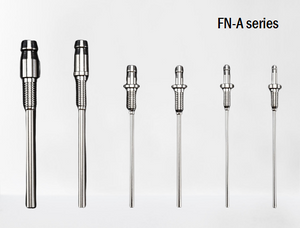

| FN3A |
16# (ID 3.2mm) |
SS316 |
100 |
| FN4A |
15# or 25# (ID 4.8mm) |
SS316 |
110 |
| FN6A |
17# or 24# (ID 6.4mm) |
SS316 |
110 |
| FN7A |
18# or 35# (ID 7.9mm) |
SS316 |
110 |
| FN9A |
36# or 73# (ID 9.6mm) |
SS316 |
130 |
| Model |
For tubing |
Material |
Length (mm) |

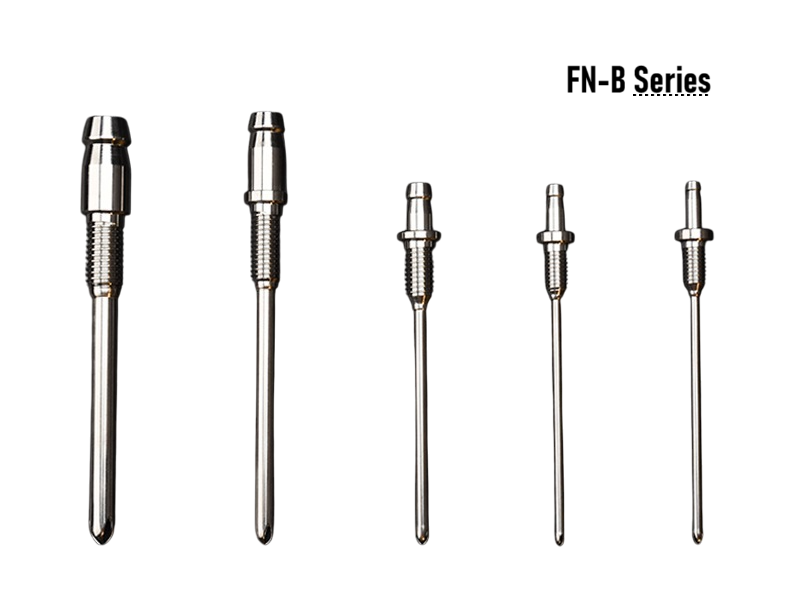

| FN3B |
16# (ID 3.2mm) |
SS316 |
100 |
| FN4B |
15# or 25# (ID 4.8mm) |
SS316 |
110 |
| FN6B |
17# or 24# (ID 6.4mm) |
SS316 |
110 |
| FN7B |
18# or 35# (ID 7.9mm) |
SS316 |
110 |
| FN9B |
36# or 73# (ID 9.6mm) |
SS316 |
130 |

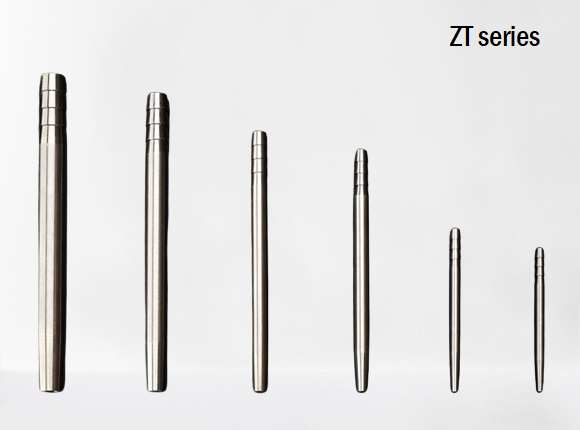

| Model |
For tubing |
Material |
ID x OD x Length (mm) |
| ZT-1 |
13#, 0.5x0.92mm |
SS304 |
0.7 x 0.9 x 100 |
| ZT-2 |
1x0.92mm |
SS304 |
1.8 x 2 x 100 |
| ZT-3 |
2x0.92mm, 3x0.92mm 14# 19# |
SS316 |
2 x 2.9 x 100 |
| ZT-6 |
16# 25# 15# |
SS316 |
4 x 6 x 100 |
| ZT-8 |
17# 24# |
SS316 |
5 x 8 x 100 |
| ZT-12 |
18# 35# 36# 73# |
SS316 |
9 x 12 x 100 |
| ZT-12-4 |
36# 73# |
SS316 |
4 x 12 x 80 |
| ZT-16 |
82# |
SS316 |
13 x 16 x 100 |

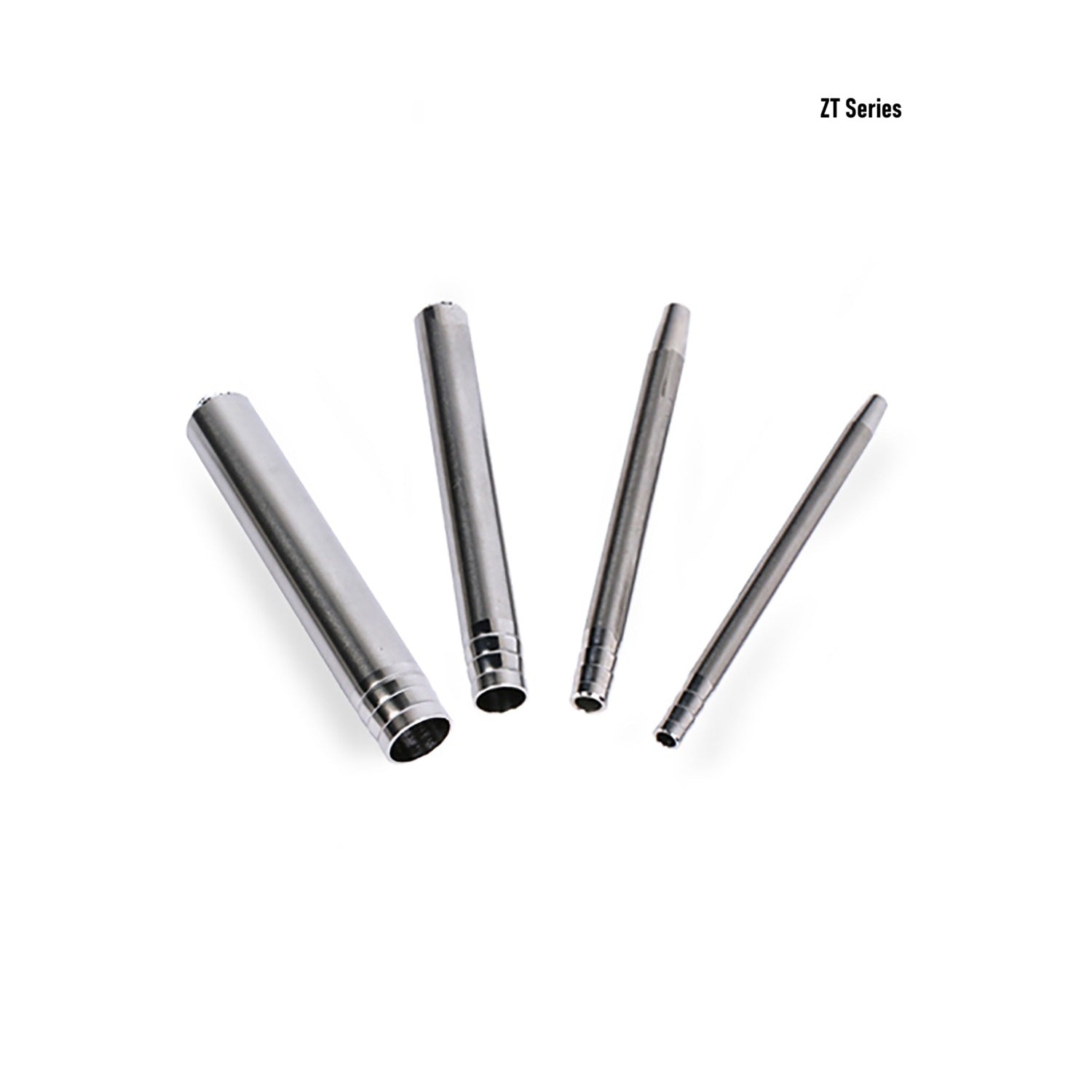

ZT nozzles are also available with fixing sleeves to ensure stability when attached to a filling rack.
