1.6mm (1/16") Wall Thickness Tubing for Pump Heads YZ15, YT15 (10m)

1.6mm (1/16") Wall Thickness Tubing for Pump Heads YZ15, YT15 (10m)

  • €60,00
    Unit price per
    (excl. VAT)
Shipping calculated at checkout.


Features

  • Excellent biocompatibility.
  • Odorless, non-toxic, and plasticizer-free with minimal leaching.
  • Smooth inner surface with strong antibacterial properties.
  • High elasticity, quickly regains shape after compression (Shore Hardness: 50-55).
  • Weather, ozone, and radiation resistant.
  • Compatible with neutral liquids, mild acids, bases, and low-concentration solvents.
  • Temperature resistant: -50°C to 230°C (static) and -40°C to 100°C (dynamic).
  • Cleanable with hot/distilled water; sterilizable via heat, pressure, ethylene oxide, or gamma rays.

Specifications

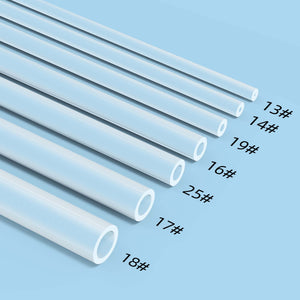

Tube Size

ID

(mm)

OD

(mm)

Wall

(mm)

Suitable Pump Heads Standard Package Pressure (Mpa) Continuous Use Pressure (Mpa) Interval Use
13# 0.8 4.0 1.6 YZ15, YT15 20m 0.17 0.27
14# 1.6 4.8 1.6 10m 0.17 0.27
19# 2.4 5.6 1.6 10m 0.17 0.27
16# 3.2 6.4 1.6 10m 0.17 0.27
25# 4.8 8.0 1.6 10m 0.14 0.24
17# 6.4 9.6 1.6 10m 0.10 0.14
18# 7.9 11.1 1.6 10m 0.07 0.10

*Kindly note that once the package has been opened, returns for this product can only be accepted in the case of quality issues.
