0.92mm Wall Thickness Micro Flow Tubing for DG/DW Pump Heads (20m)

0.92mm Wall Thickness Micro Flow Tubing for DG/DW Pump Heads (20m)

  • (excl. VAT)
Shipping calculated at checkout.

Features

  • Excellent biocompatibility
  • Odorless, non-toxic, and plasticizer-free with minimal leaching
  • Smooth inner surface with strong antibacterial properties
  • High elasticity, quickly regains shape after compression (Shore Hardness: 50-55)
  • Weather, ozone, and radiation resistant
  • Compatible with neutral liquids, mild acids, bases, and low-concentration solvents
  • Temperature resistant: -50°C to 230°C (static) and -40°C to 100°C (dynamic)
  • Cleanable with hot/distilled water; sterilizable via heat, pressure, ethylene oxide, or gamma rays
  • Please note that straps are needed to install the tubing to the DG, DW, and FZ series pump heads.

    Specifications

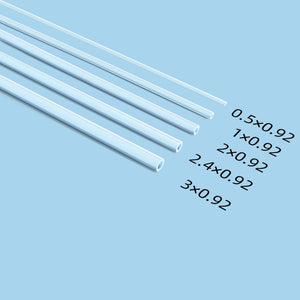

    Tube size ID (mm) OD (mm) Wall (mm) Suitable pump heads Standard Packing
    0.5x0.92 0.5 2.34 0.92 DG series, DW10 20m
    1x0.92 1 2.84 0.92 20m
    2x0.92 2 3.84 0.92 20m
    2.4x0.92 2.4 4.24 0.92 20m
    3x0.92 3 4.84 0.92 20m

    Kindly note that once the package has been opened, returns for this product can only be accepted in the case of quality issues.
