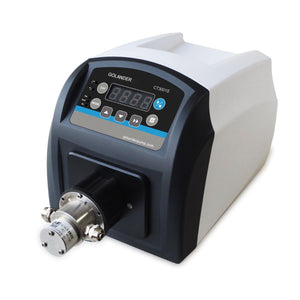

CT3001S Variable-Speed Micro Gear Pump
The CT3001S variable-speed gear pump is engineered for the precise and efficient transfer of high-pressure, viscous liquids, offering a flow range of 15–2700 mL/min depending on the pump head and speed settings. Equipped with a 128 × 32 dot-matrix LCD display the CT3000S supports multiple operating modes including internal control, external control, time dispense mode, and level control. The built-in RS485 MODBUS communication interface allows seamless connection with external systems such as PCs, HMIs, or PLCs for monitoring and remote control.
Functions and Features
- 128 × 32 dot-matrix LCD display
- Supports multiple operating modes including internal control, external control, time dispense function, and level control
- External signal control for start/stop, direction, and speed
- Features start/stop, full-speed, speed regulation, and power-off memory
- Built-in RS485 communication interface supporting MODBUS protocol for communication and remote control
- Excellent anti-interference capability and wide voltage design, suitable for complex power environments
- Smooth, pulse-free liquid transfer with minimal noise
- Efficient transfer of high-pressure, viscous liquids
Specifications
- Pump Head: MG204, MG209, MG213 (PEEK)
- Flow Range: 15–2700 mL/min
- Speed Range: 50–3000 rpm
- Speed Resolution: 1 rpm
- Direction: One Direction
- Liquid Viscosity: ≤200cSt
- Particle Size: ≤10 µm
- Control Mode: Time dispense
- Power Supply: AC 100–240V, 50/60Hz
- Power Consumption: <150W
- External Control: 5V (12V/24V optional) for start/stop and direction; 0–5V (0–10V, 4–20mA optional) for speed control
- Power-Off Memory: Retains parameters set before power loss
- Communication interface: RS485 MODBUS
- Display: 128 × 32 LCD display
- Additional Functions: Keypad control for start/stop, full speed, and power-off memory; foot switch; external start/stop with optical isolation; 5V/12V/24V signal input options; 0–5V / 0–10V / 4–20mA speed control; time dispense
- Operating Conditions: Temperature 0–40°C; Relative humidity <80%
- Dimensions (L × W × H): 373 × 180 × 179 mm
- Drive Weight: 3.8 kg
- IP Rating: IP31
CT3001S Compatible Pump Heads
| Pump Head | Gear Material | Max Output Pressure | Flow Range | Liquid Temperature |
|---|---|---|---|---|
| MG204 | PEEK | 0.8 MPa (116 psi) | 15–900 mL/min | -45–120 °C |
| MG209 | PEEK | 0.8 MPa (116 psi) | 30–1800 mL/min | -45–120 °C |
| MG213 | PEEK | 0.3 MPa (44 psi) | 45–2700 mL/min | -45–120 °C |
