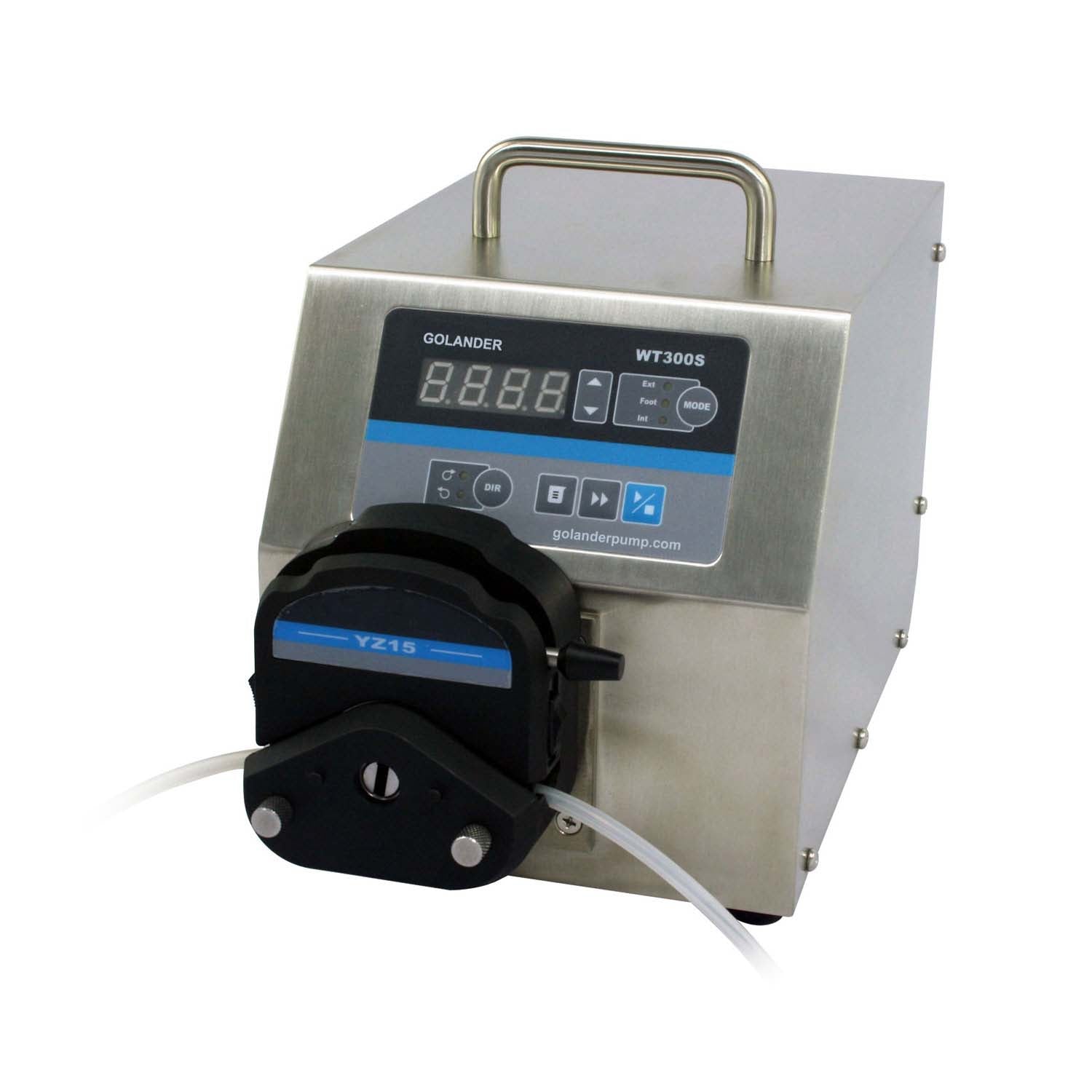

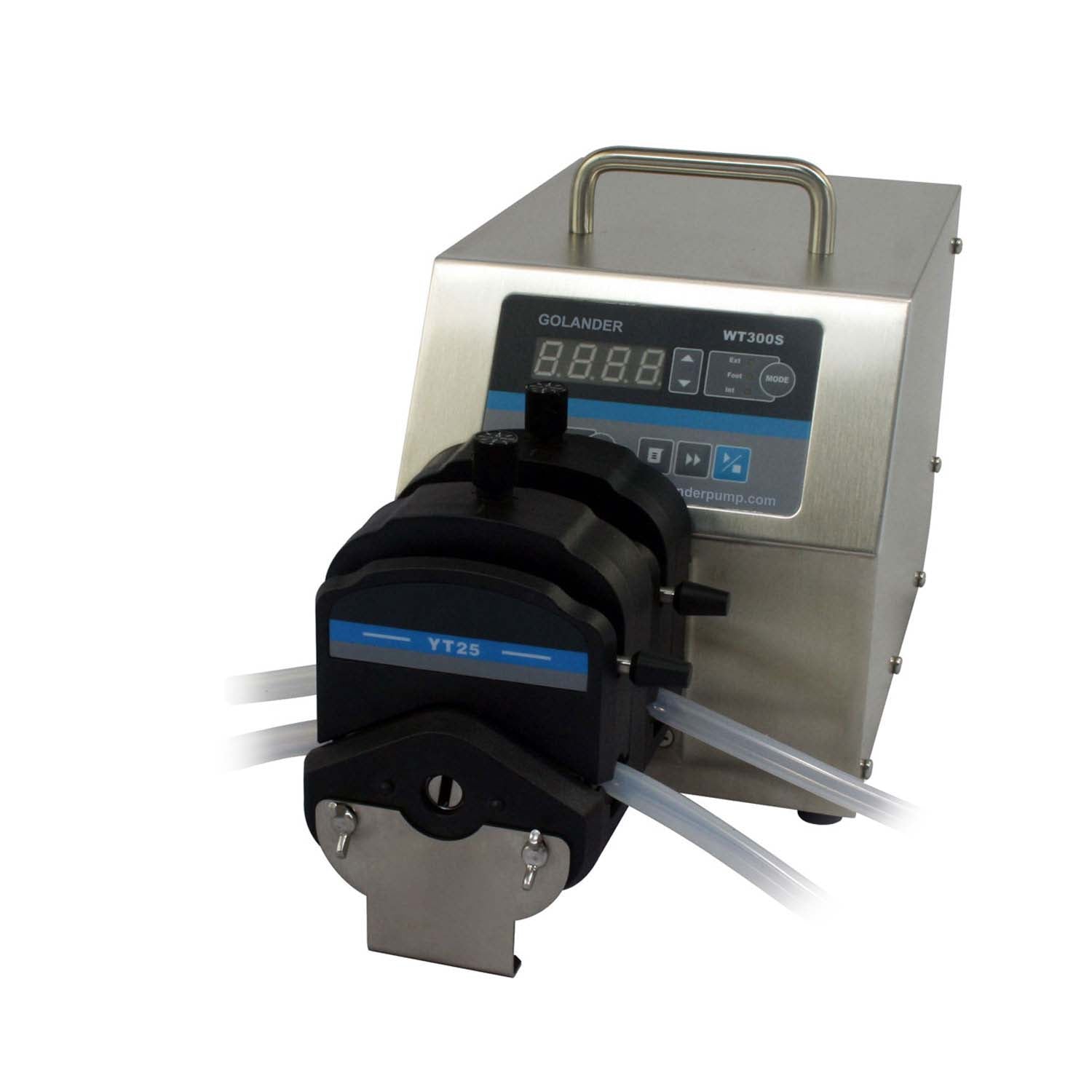

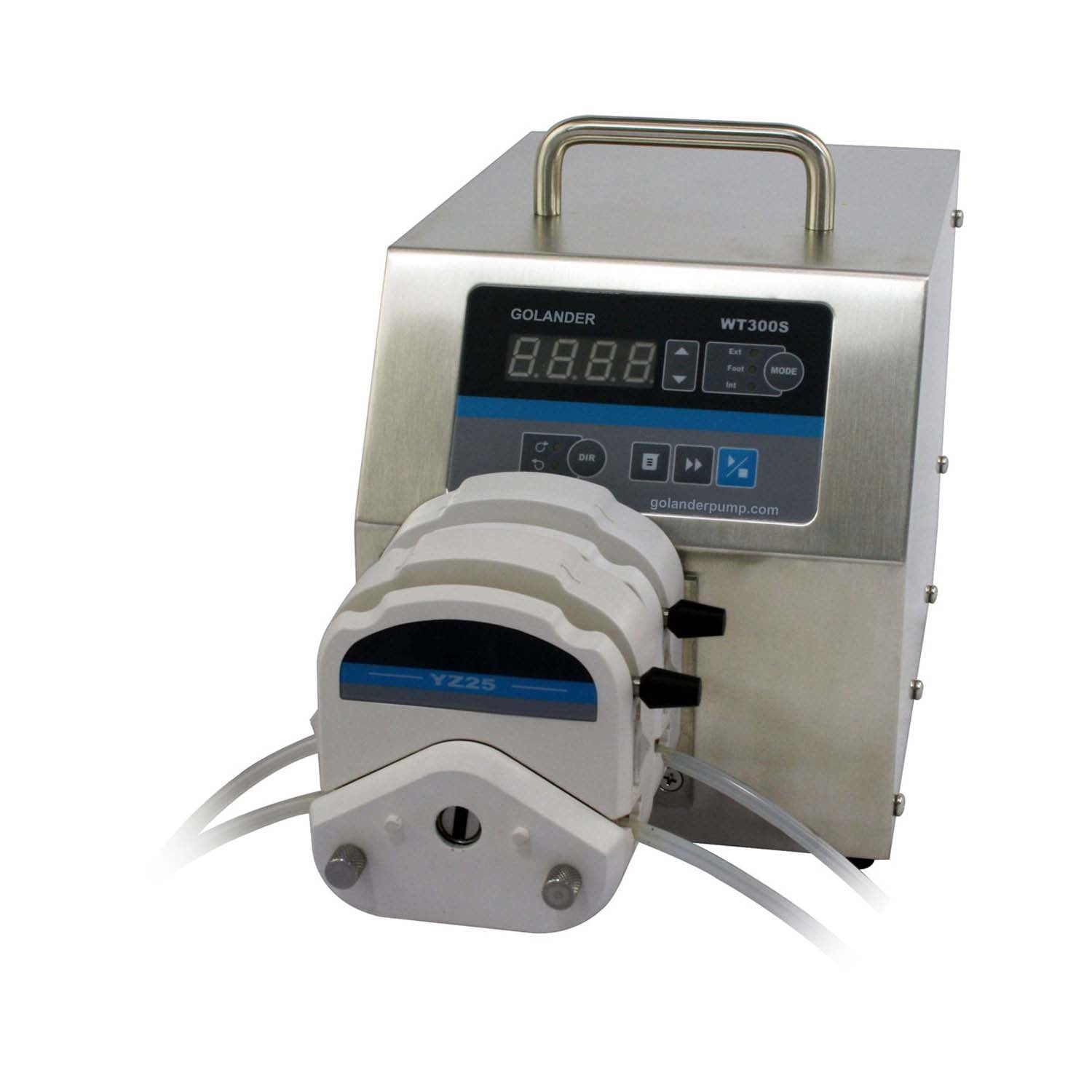

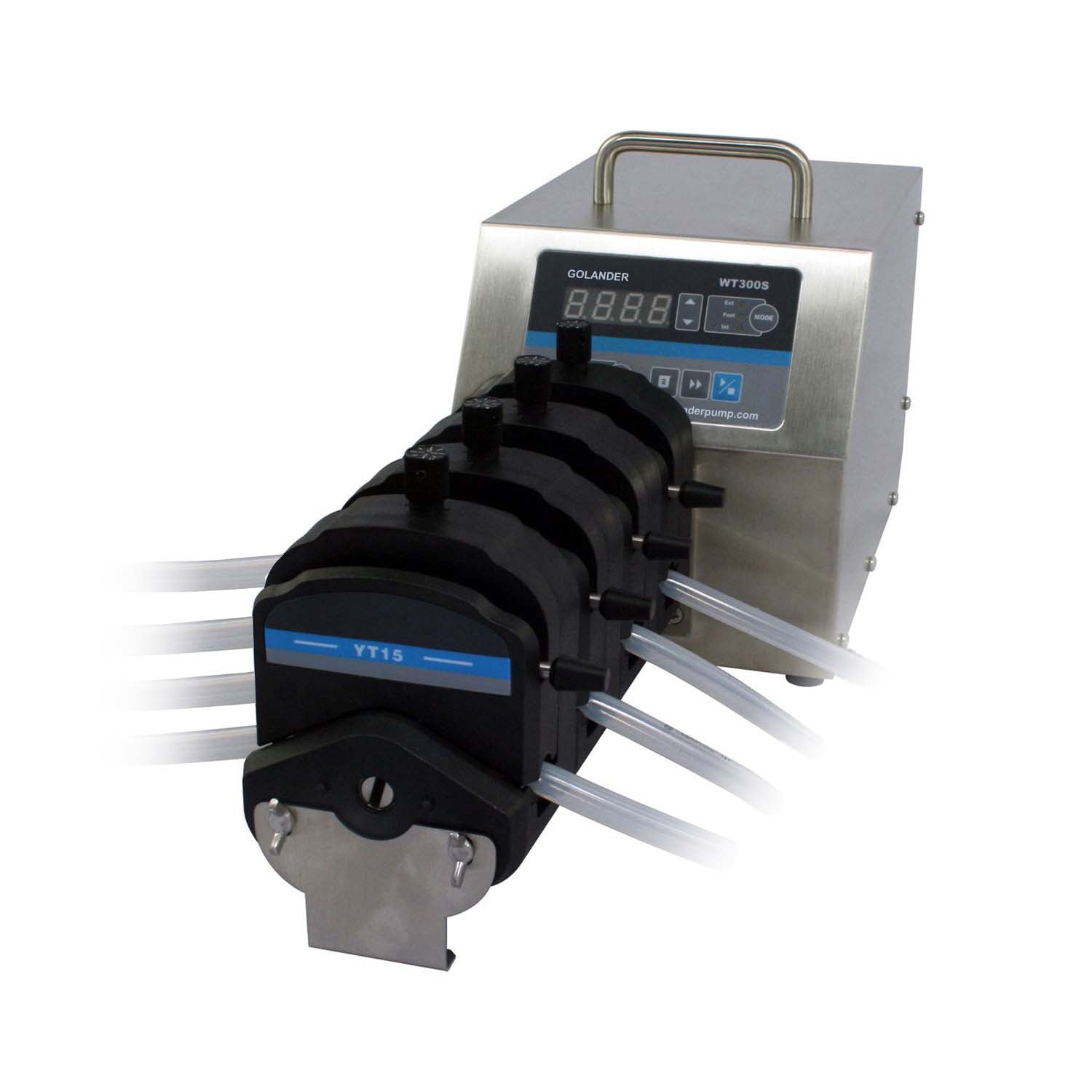

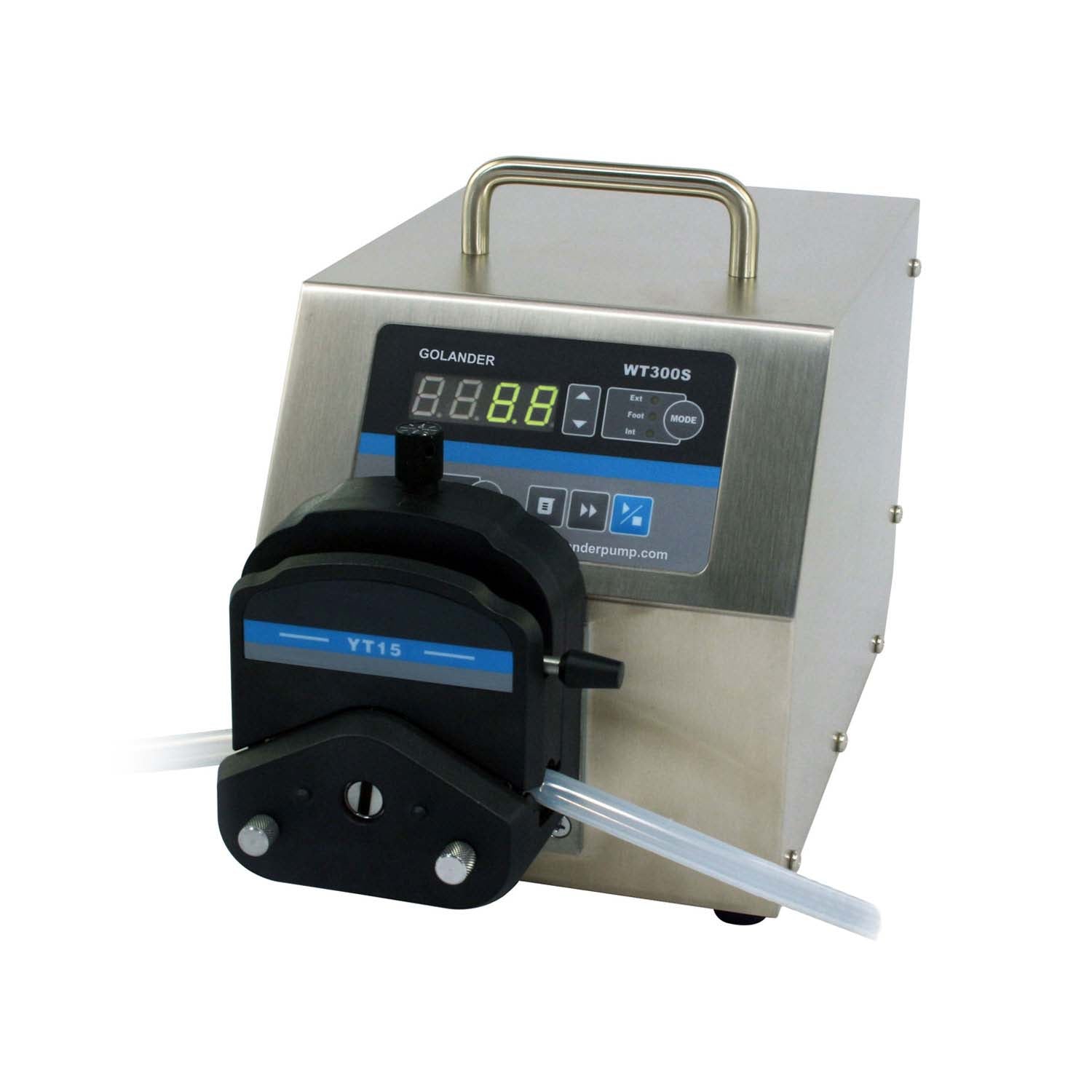

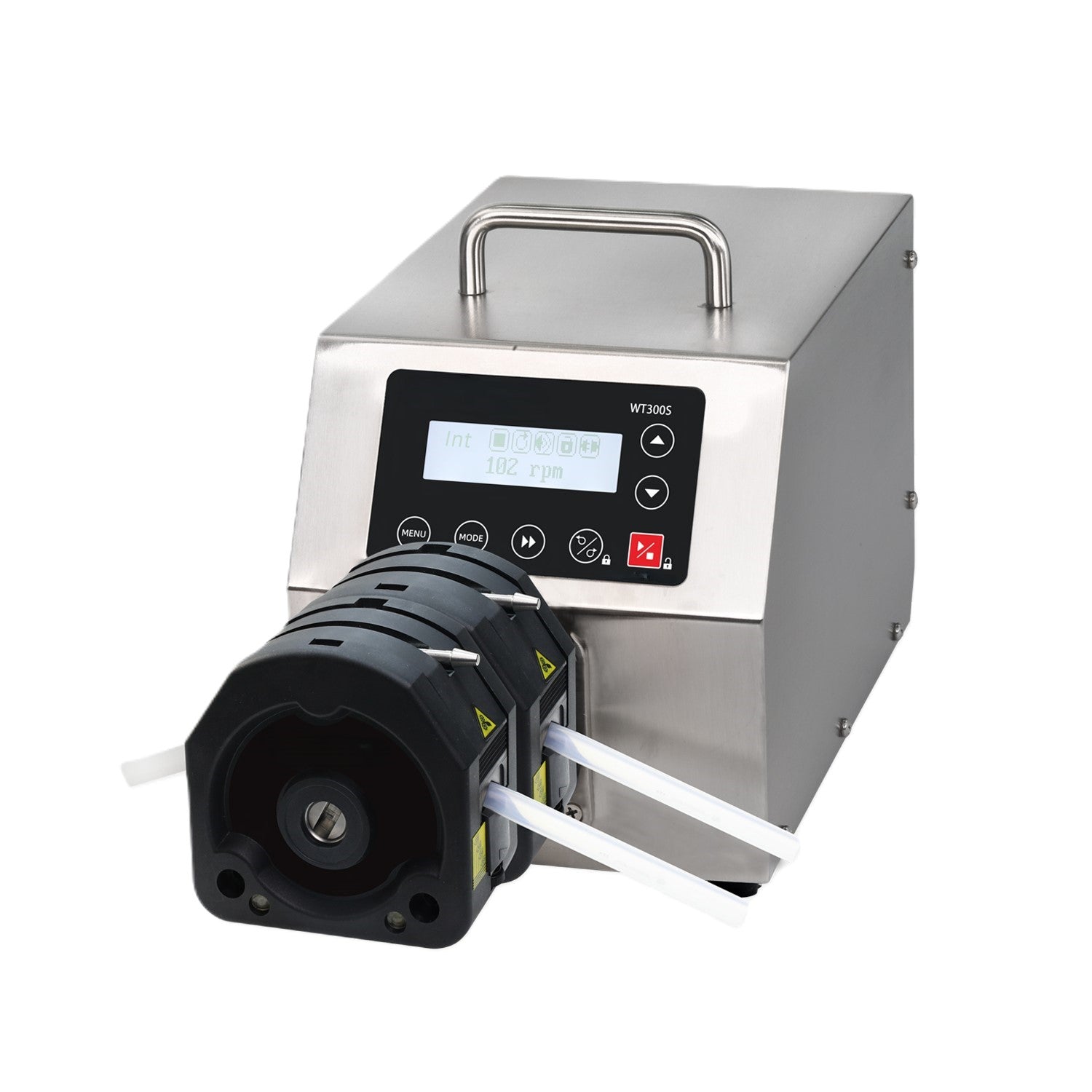

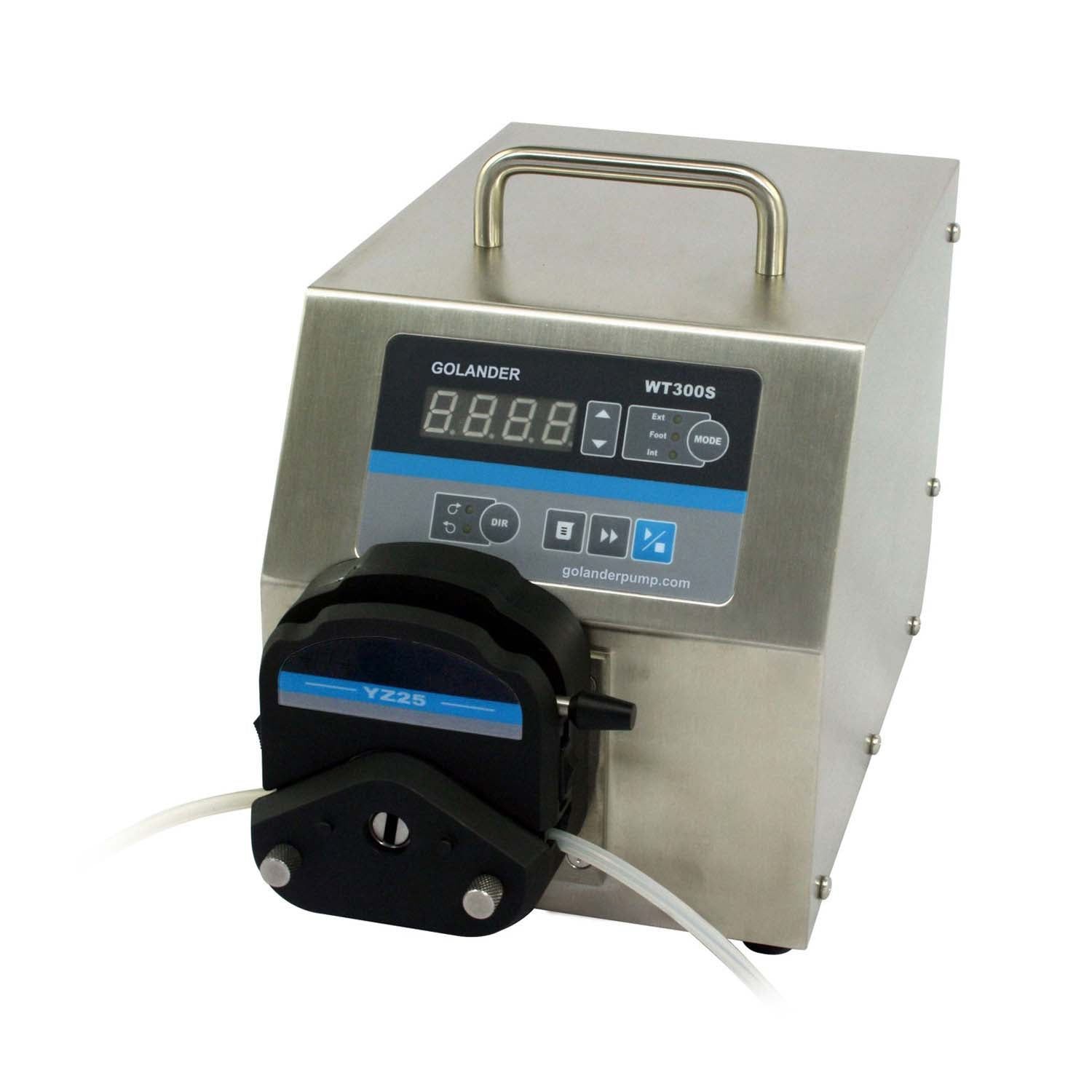

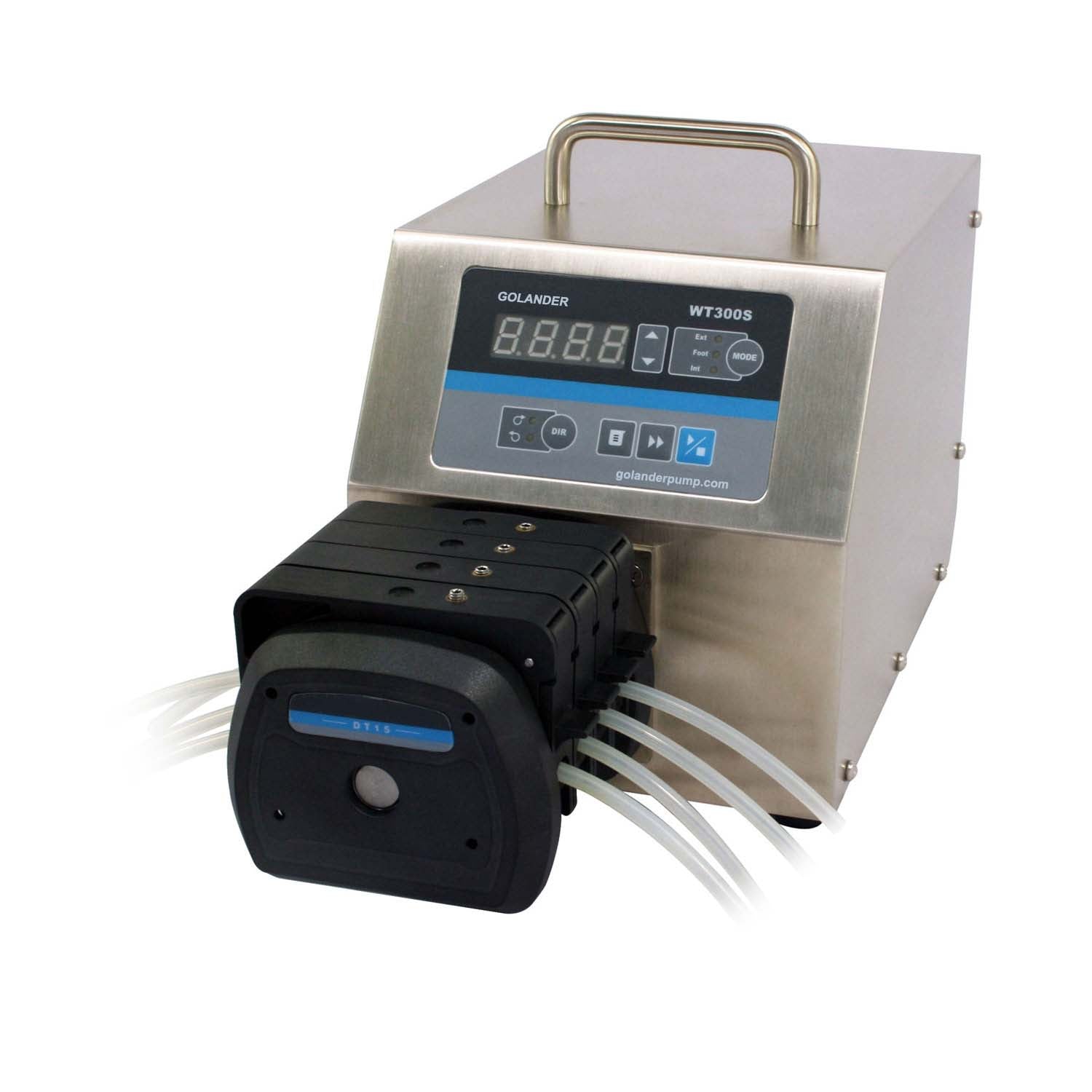

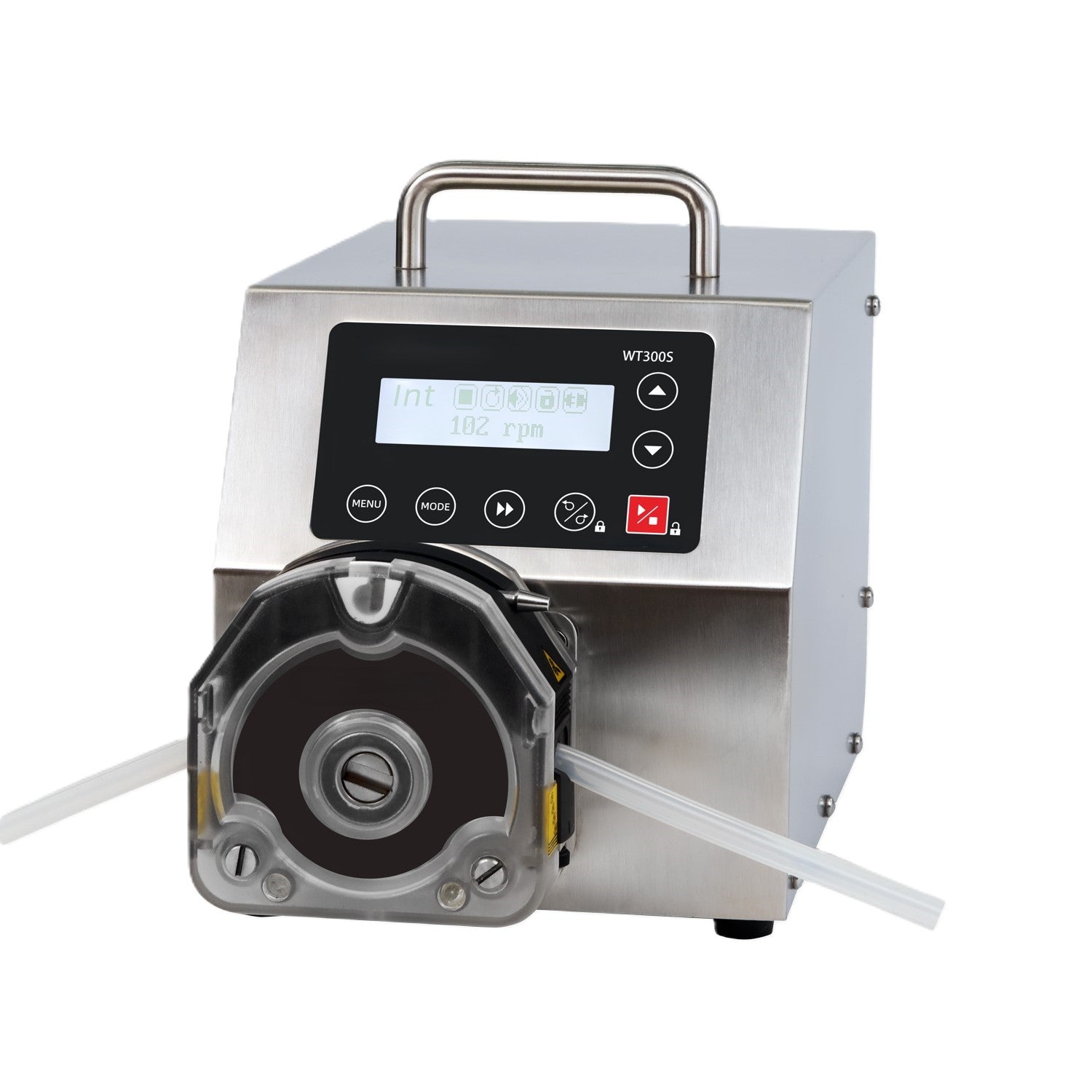

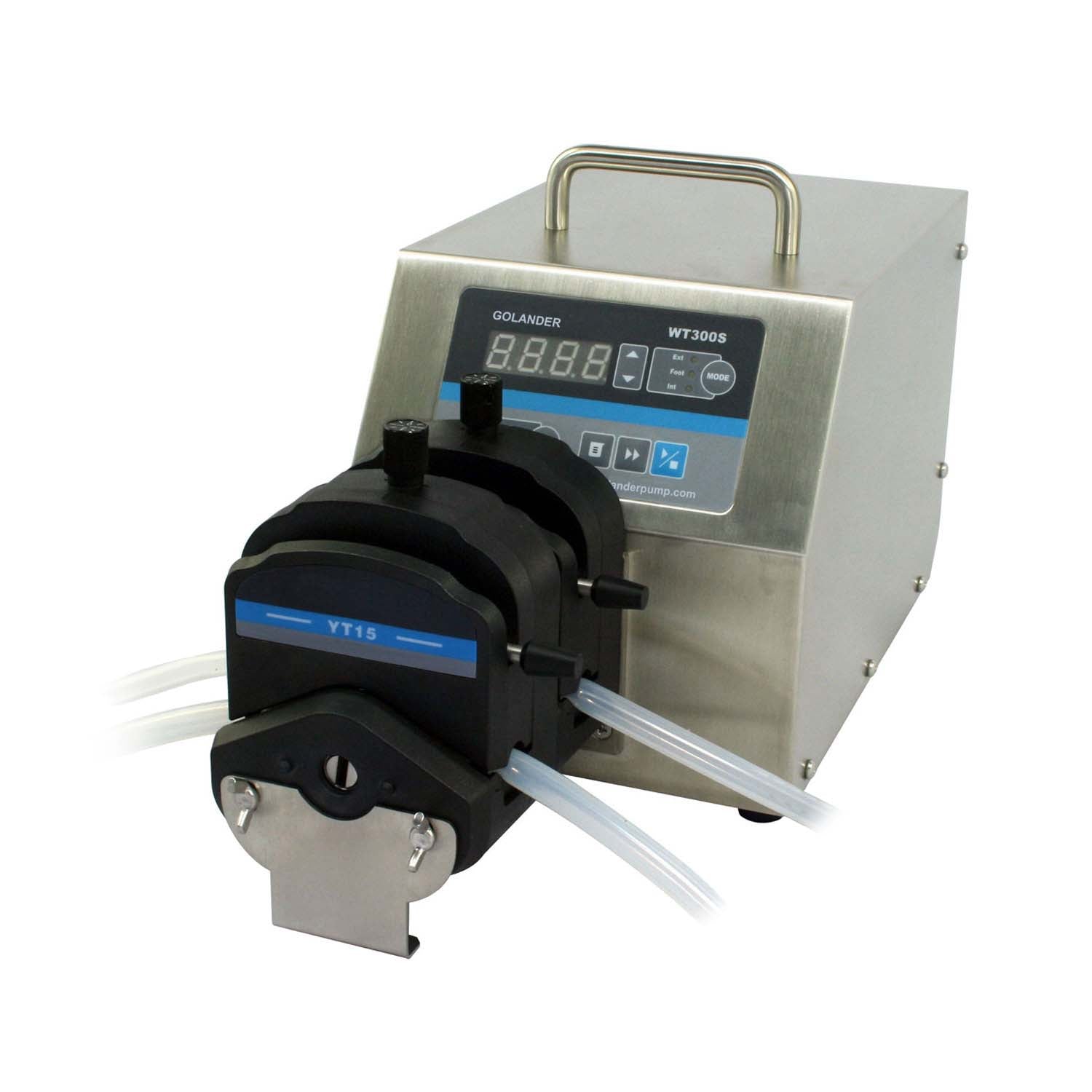

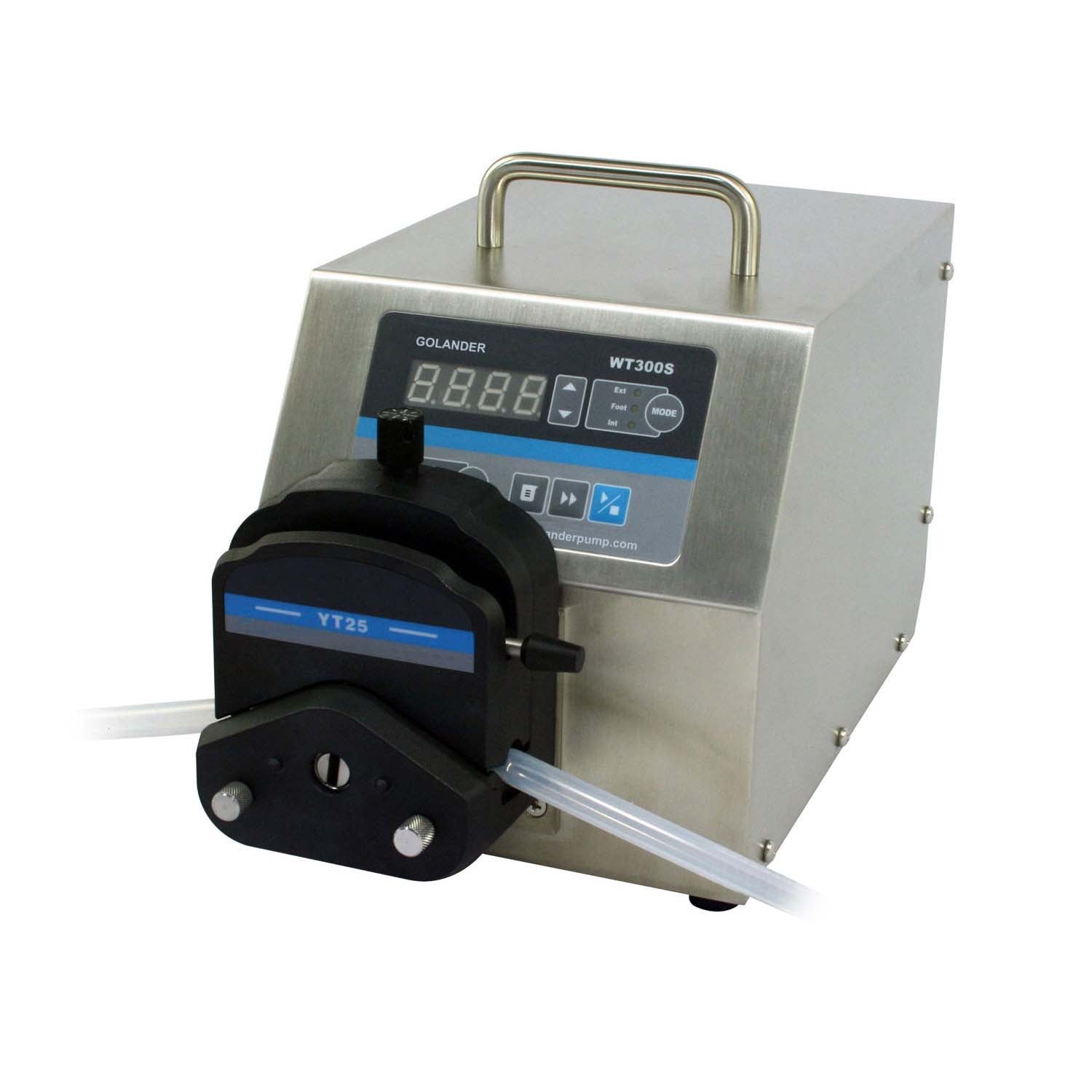

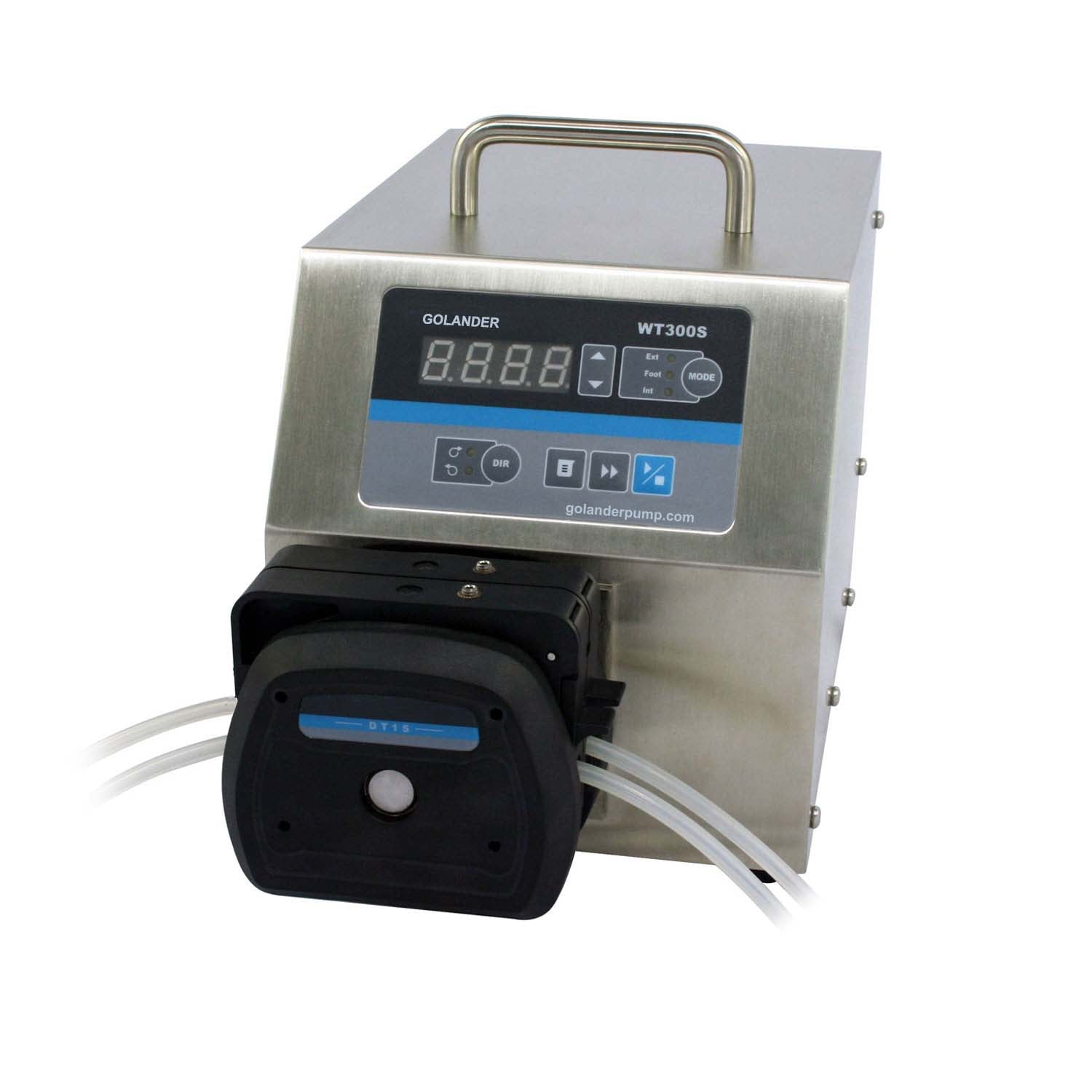

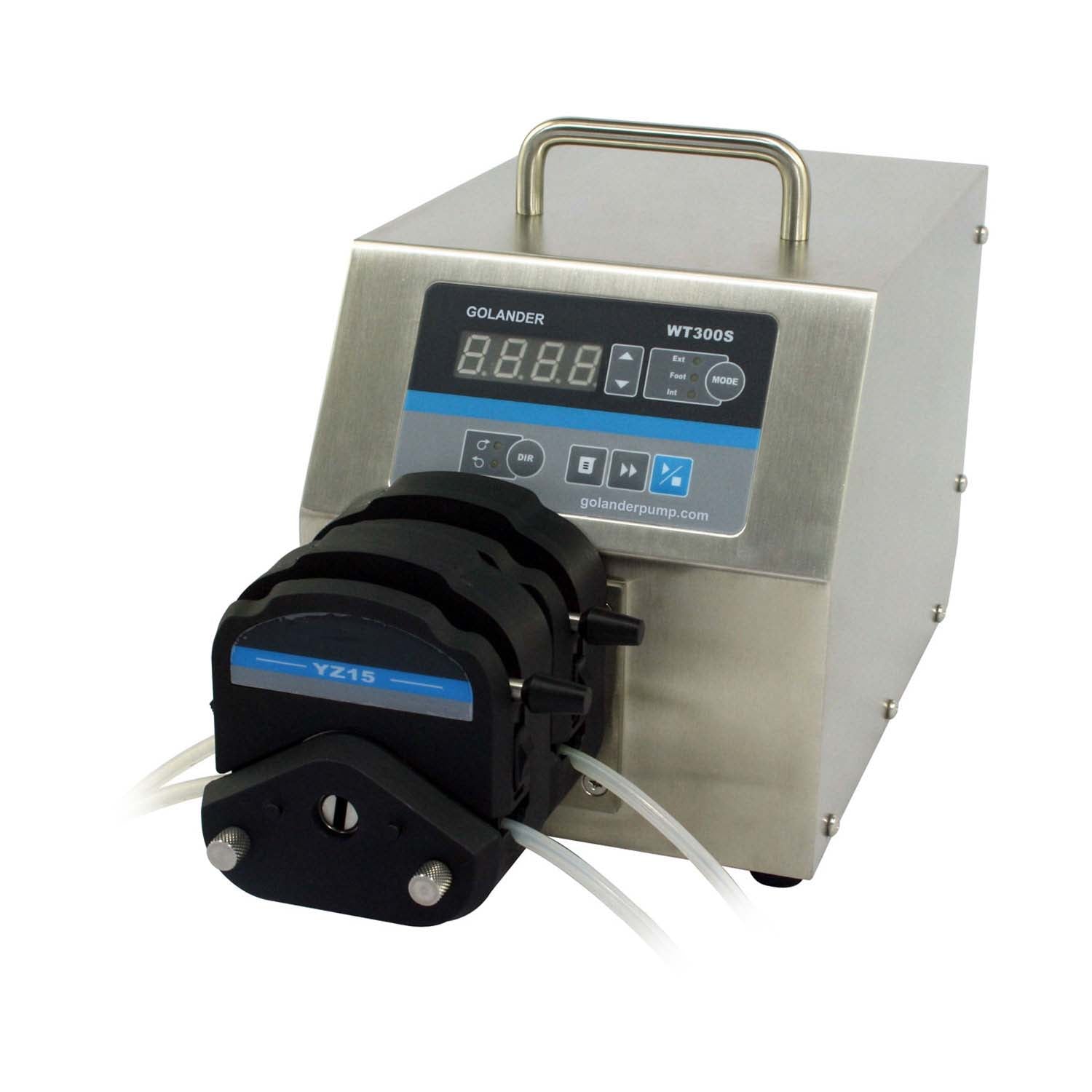

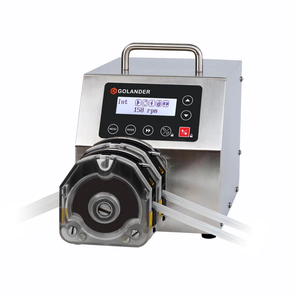

WT300S Variable Speed Peristaltic Pump
The WT300S High Torque Variable Speed Peristaltic Pump, powered by a maintenance-free DC brushless motor, is robust, powerful, and can be cascaded with multiple pump heads. It features fundamental operations including reversible direction, start/stop, full speed (for rapid cleaning), and adjustable speed, all controllable through external signals. The pump is further equipped with a time dispensing function. Enhanced communication capabilities are facilitated through the RS485 MODBUS interface, enabling effective interaction with external devices such as PCs, HMIs, or PLCs.
Functions and Features
- Four digits LED indicator displaying speed, operating mode, internal/external control, footswitch control and other working modes.
- Membrane keypad operation.
- Reversible direction, start/stop, adjustable speed and full speed, power-off memory function
- Easy dispensing functions, repeats liquid dispensing by time or volume.
- High torque output, able to drive multi-channels and various types of pump heads.
- Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and organic solvents.
- The circuit board with conformal coating makes it dust-proof and moisture-proof.
- Anti-interference feature, wide input voltage range for complex power environment.
- External on/off voltage signal controls the start/stop, reversible direction, easy dispensing function, and optically coupled isolator; external analogue control for speed adjustment.
- RS485 MODBUS interface, easy to be controlled by an external device.
- Optional footswitch or timer for dispensing fluid.
Specifications
- Flow range: 3-3500 mL/min
- Speed range: 30-350 rpm/min
- Speed resolution(rpm): 1 rpm
- Flow accuracy: ＜3%
- Power supply: AC100-240V, 50Hz/60Hz
- Power consumption: <200W
- External logic level control signal: 5V, 12V (standard), 24V (optional)
- External analog control signal: 0-5V (standard), 0-10V, 4-20mA (optional)
- Communication interface: RS485 MODBUS interface
- Operating condition: 0-40 °C
- Relative humidity: <80%
- IP grade: IP31
- Dimensions (L x W x H): 286mm x 179mm x 230mm
- Weight: 6.2kg
Dimensions (mm)
WT300S Compatible Pump Heads, Tubing, and Flow Parameters
| Drive | Pump Head | Tubing Size | Flow Rate Per Channel* |
| WT300S 30-350 rpm |
KZ25-PC (1 channel) | 15#24#35#36# | 3-3500 ml |
| 2xKZ25-PC (2channel) | 15#24#35#36# | 3-3500 ml | |

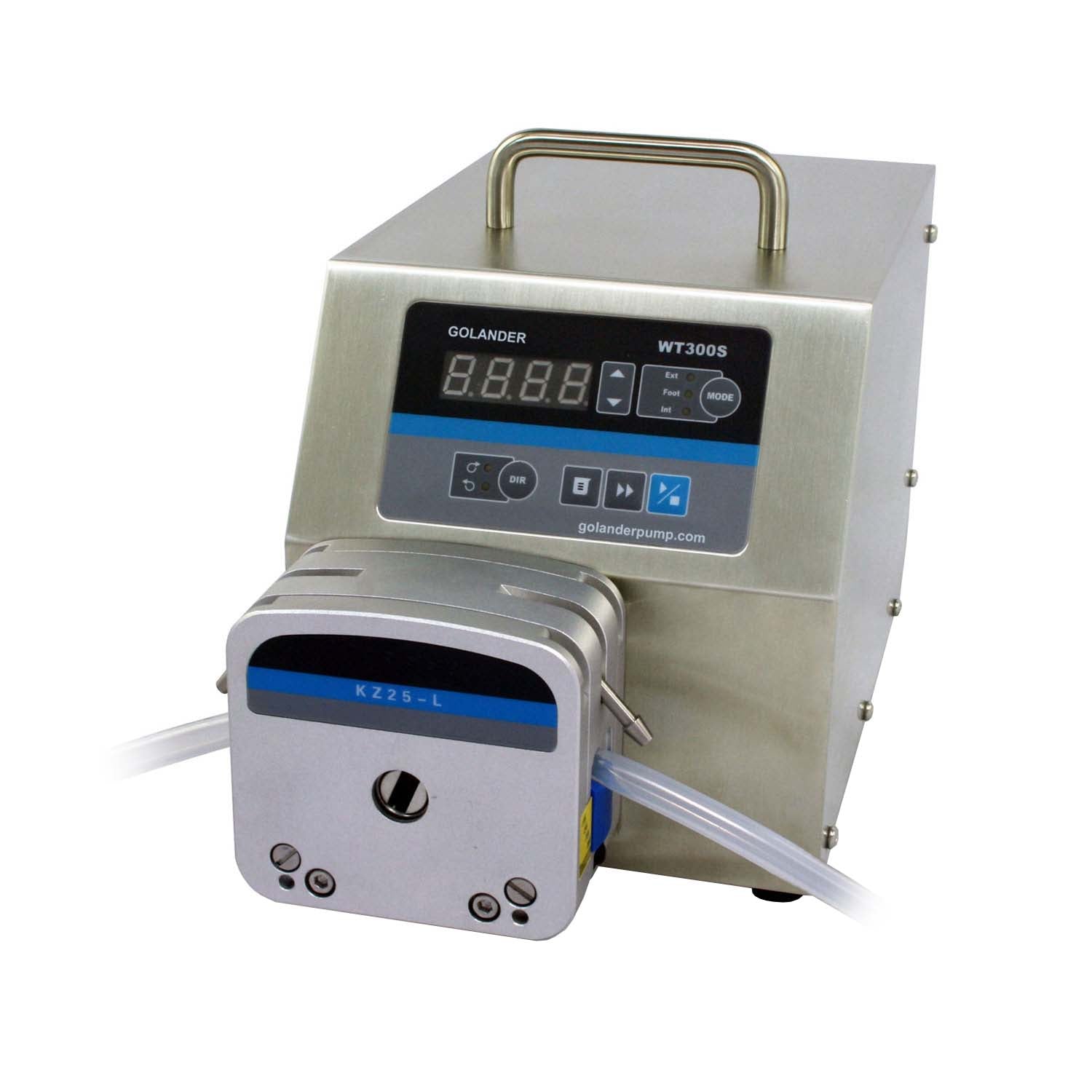

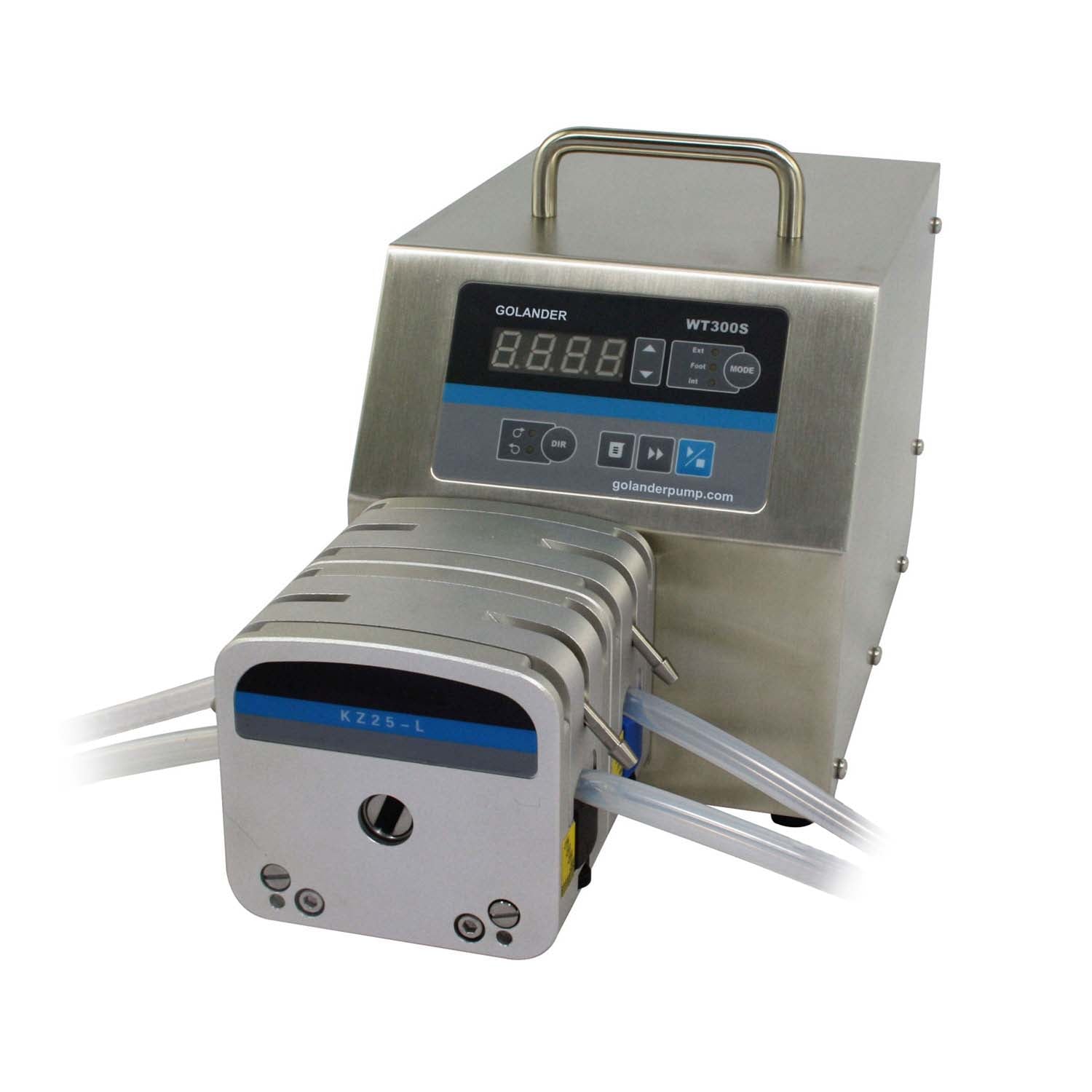

| KZ25-L (1 channel) | 15#24#35#36# | 3-3500 ml | |

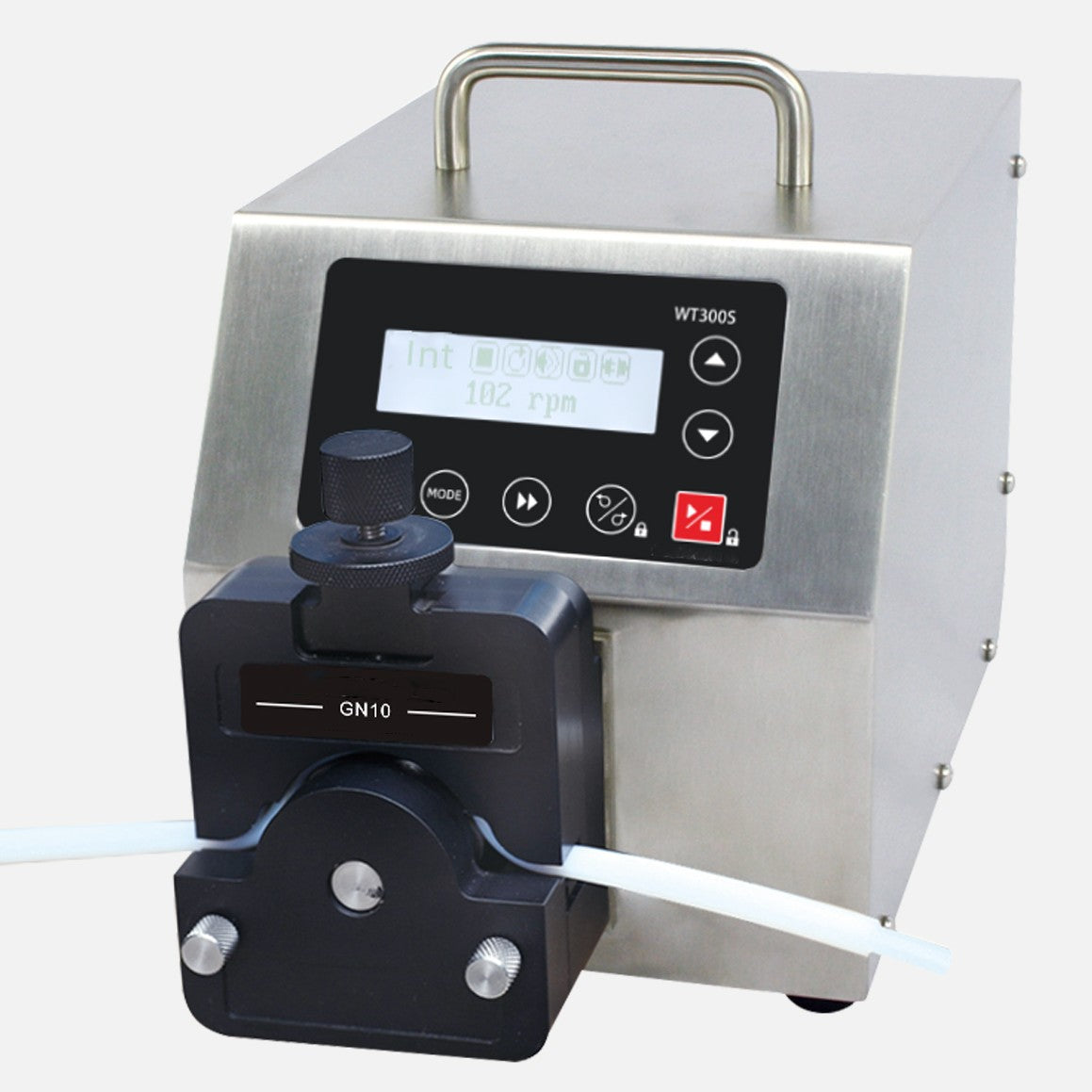

| GN10 (1 channel) | 2.48×0.76 mm 4.48×0.76 mm |
1.8-65 ml |
*The above flow rate data is obtained from tests with pure water at room temperature and pressure and is for reference only. Actual flow rates may vary due to pressure, media characteristics, and other relevant factors.
