BT301S V3 Variable Speed Peristaltic Pump
The BT301S Variable Speed Peristaltic Pump delivers a flow range of 0.006 to 1690 mL/min, featuring variable pump heads and tubing. Beyond essential functions like reversible direction, start/stop, full speed (for rapid cleaning), and speed adjustment, it introduces a Easy Dispense Function for liquid dispense at set intervals. Equipped with an RS485 MODBUS interface, the pump can be seamlessly controlled by external devices, including computers, human-machine interfaces, or PLCs.
Functions and Features
- 128×32 dot matrix LCD, simple parameter settings and intuitive status display
- Soft start, slow-stop, forward/reverse operation, full speed, status memory
- External control: analog signal speed control, start/stop, forward/reverse, wide voltage input (5-24V)
- Communication: RS485, MODBUS protocol, customizable parameters
- Customization-friendly for OEM applications
- Circuit board with three-proof paint for durability
- Exceptional anti-interference characteristics, wide voltage design
- ABS engineering plastic housing, streamlined design
Specifications
- Flow range: 0.006-1690 mL/min
- Flow accuracy: ±0.5%.
- Speed range: 0.1-350rpm
- Speed resolution: 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution
- Power supply: AC 100-240V，50Hz/60Hz
- Power consumption: <40W
- External control on/off signal: 5V, 12V (standard), 24V (optional)
- External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
- Communication interface: RS485 MODBUS interface
- Operating condition: Temperature 0~40°C; Relative humidity <80%
- IP grade: IP31
- Dimensions (L x W x H): 284 x 180 x 197 mm
- Weight: 4.7 kg
Dimensions (mm)
BT301S Compatible Pump Heads, Tubing, and Flow Parameters
| Drive | Pump Head | Tubing Size | Flow Rate Per Channel* |
| BT301S 0.1-350 rpm |

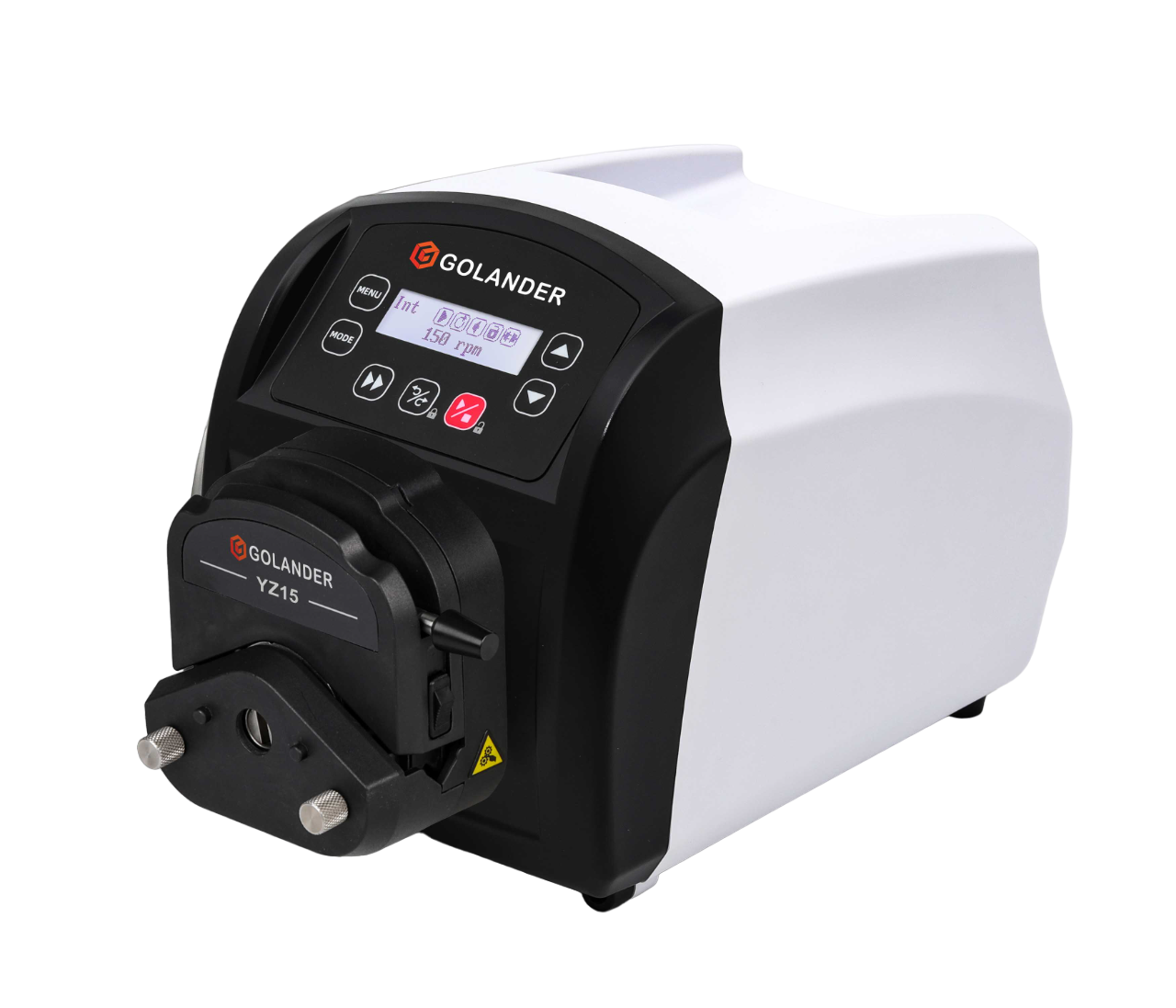

YZ15 (3 rollers, 1 channel) 2xYZ15 (3 rollers, 2 channels) |
13# (ID 0.8mm, Wall 1.6mm) | 0.005-18 ml/min |
| 14# (ID 1.6mm, Wall 1.6mm) | 0.02-70 ml/min | ||
| 19# (ID 2.4mm, Wall 1.6mm) | 0.05-175 ml/min | ||
| 16# (ID 3.2mm, Wall 1.6mm) | 0.08-280 ml/min | ||
| 25# (ID 4.8mm, Wall 1.6mm) | 0.19-665 ml/min | ||
| 17# (ID 6.4mm, Wall 1.6mm) | 0.3-1050 ml/min | ||
| 18# (ID 7.9mm, Wall 1.6mm) | 0.43-1495 ml/min | ||

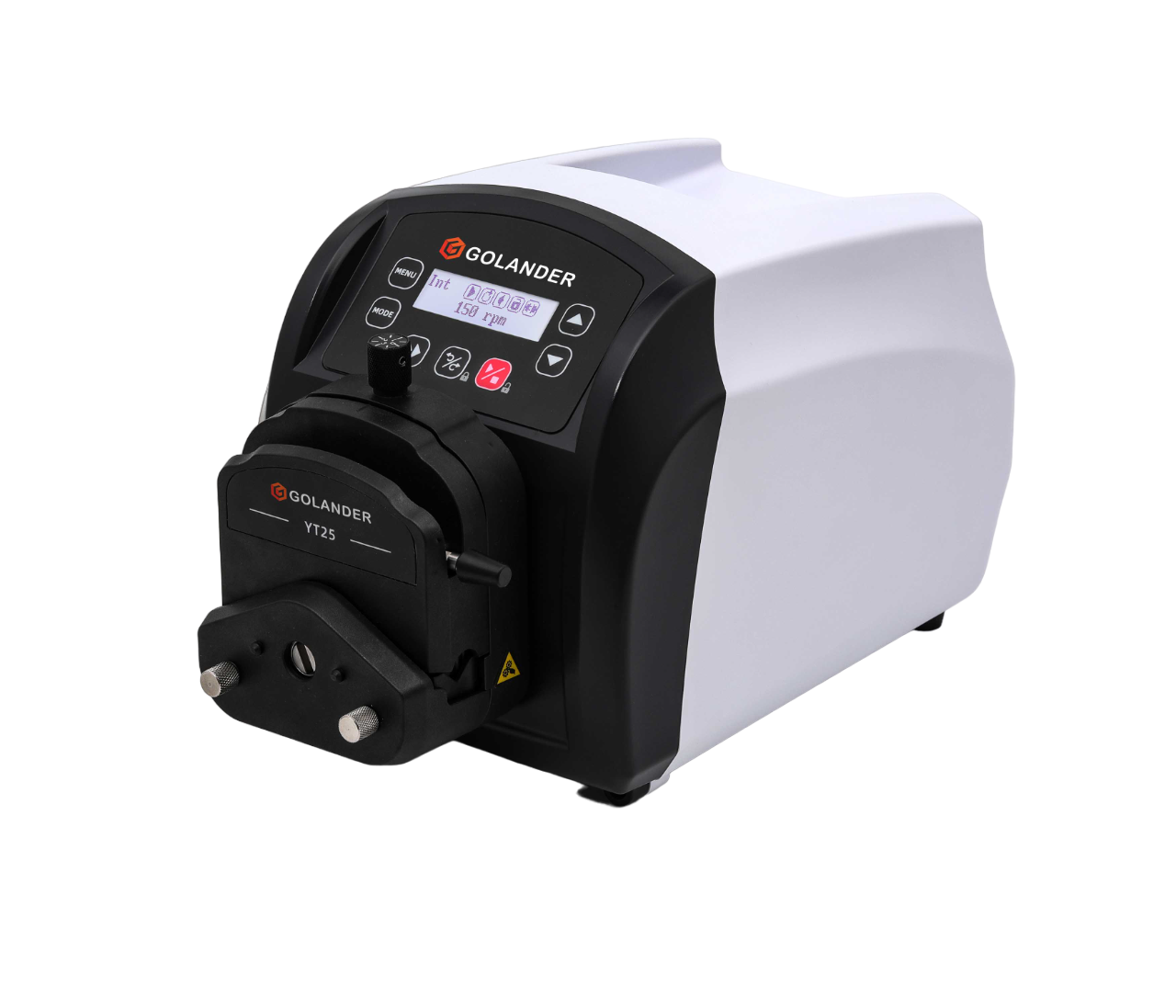

| YT25 (4 rollers, 1 channel) |
15# (ID 4.8mm, Wall 2.4mm) | 0.18-641 ml/min | |
| 24# (ID 6.4mm, Wall 2.4mm) | 0.31-1085 ml/min | ||
| 35# (ID 7.9mm, Wall 2.4mm) | 0.39-1365 ml/min | ||
| 36# (ID 9.6mm, Wall 2.4mm) | 0.50-1750 ml/min |
*The above flow rate data is obtained from tests with pure water at room temperature and pressure and is for reference only. Actual flow rates may vary due to pressure, media characteristics, and other relevant factors.
