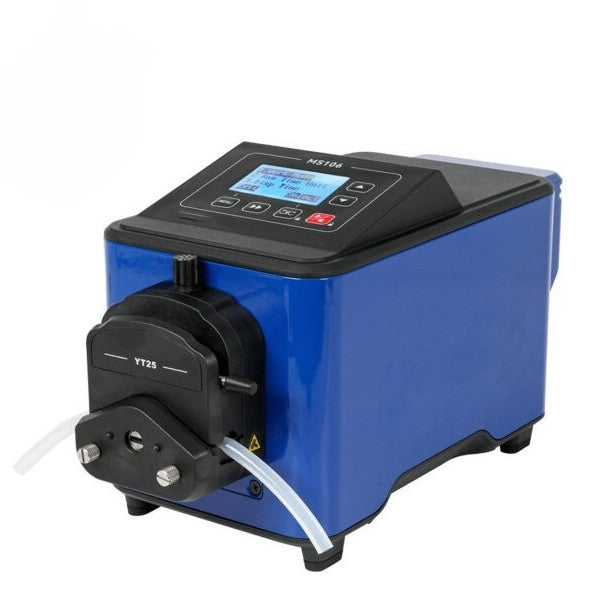

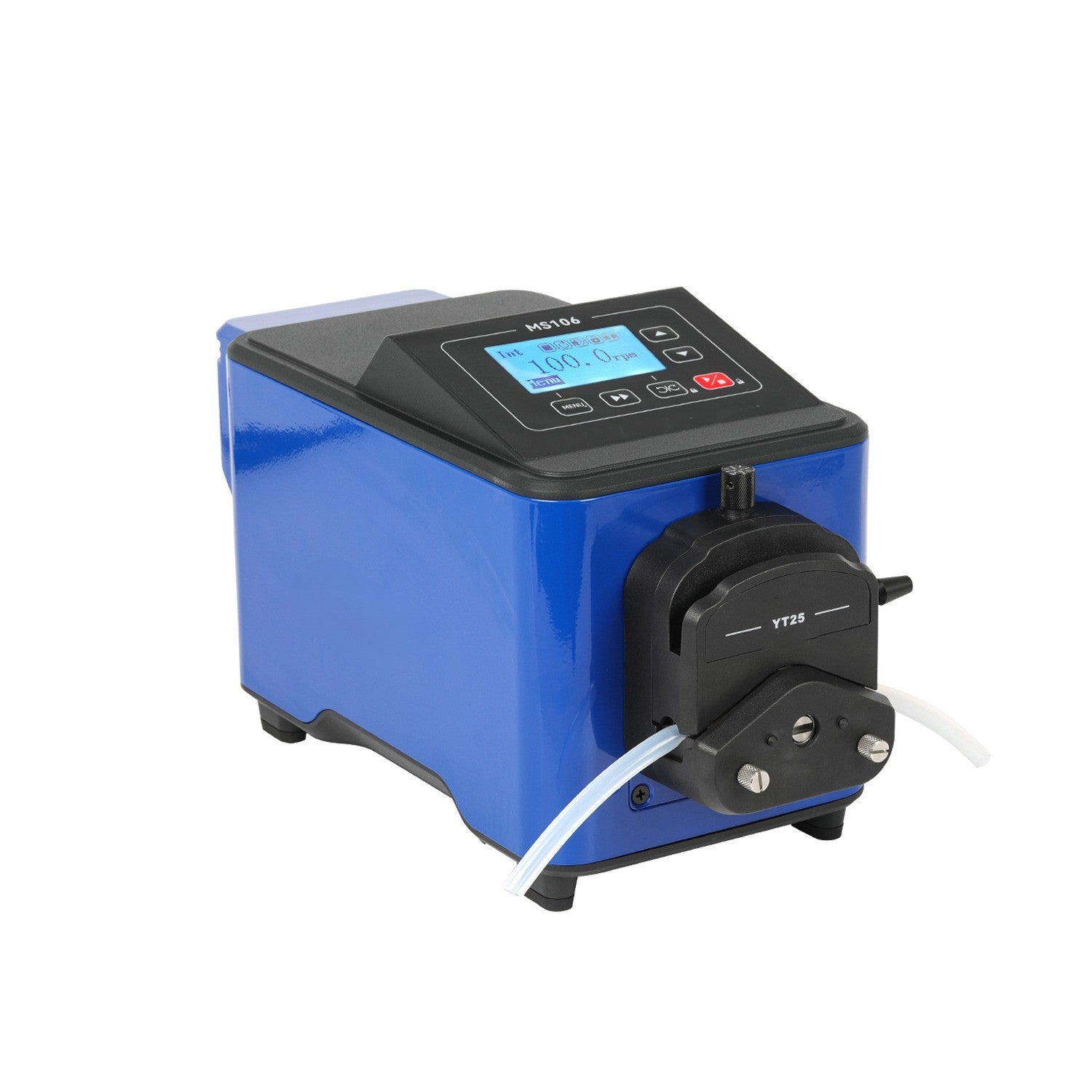

MS106 Peristaltic Pump with IP66/IP67 Protection Rating
The MS106 high-protection peristaltic pump is specifically engineered for pharmaceutical and industrial applications. Featuring an IP66/IP67 protection rating, it is fully dustproof and resistant to short-term liquid immersion. Designed for durability, it ensures stable long-term operation in harsh environments, including those with dust, high humidity, and mild acid-alkali salt spray.
Functions and Features
- Cast Aluminum Housing: Powder-coated, lightweight, corrosion-resistant, excellent heat dissipation with streamlined appearance.
- 3-Inch Display Screen: Clear, user-friendly interface for easy operation.
- Servo Motor Drive: Ensures high precision, strong torque, and low-noise performance.
- Multi-Channel Transfer & Simple Dispensing: Timed transfer and filling by setting run time, interval, and cycles.
- Smart Connectivity: RS485 communication supported and MODBUS protocol compatible for system integration.
- Three-Level User Access Control: Protects settings and prevents unauthorized parameter changes.
- Premium Materials: Components sourced from top-tier brands to guarantee reliability and durability.
- Applications: Suitable for biopharmaceuticals, mining, petrochemical, and food industries.
- Typical Uses: Raw liquid transfer, polycarboxylate synthesis, and flotation reagent dosing in mining.
Specifications
- Flow range: 0.005–7700 mL/min
- Speed range: 0.1–350 rpm
- Speed resolution: 0.1 rpm
- Speed accuracy: ＜±0.2%
- Power supply: AC 100–240V, 50Hz/60Hz
- Power consumption: <180 W
- Operating conditions: Ambient temperature 0–40°C; Relative humidity <80%
- Dimensions (L × W × H): 363 × 180 × 230 mm
- Protection rating: IP66/IP67
- Digital communication: RS485, MODBUS protocol
- Weight: 10.5 kg
- Housing material: Cast aluminum
- Timing range: 0.1–999.9 sec/min/h/day
- External control signals:
- Output: Speed control via analog (0–5V / 0–10V / 4–20mA), switchable via software
- Input: Start/Stop and Forward/Reverse, 5–24V wide input, opto-isolated
MS106 Compatible Pump Heads and Tubing, Flow Parameters
| Drive | Pump Head | Tubing Size | Flow Rate Per Channel* |
| MS106 | YZ15 / YZ15T (1, 2 or 4 channels) | 13# 14# 19# 16# 25# 17# 18# | 0.005 – 1575 mL/min |
| YT25 (1 or 2 channels) | 15# 24# 35# 36# | 0.18 – 1750 mL/min | |
| KZ25 (1 channel) | 15# 24# 35# 36# | 0.31 – 3850 mL/min | |
| DMD25 (1 channel) | 15# 24# 35# 36# | 0.4 – 4200 mL/min | |
| YZ35 (1 channel) | 73# 82# | 1.33 – 7700 mL/min |
*The above flow rate data is obtained from tests with pure water at room temperature and pressure and is for reference only. Actual flow rates may vary due to pressure, media characteristics, and other relevant factors.
